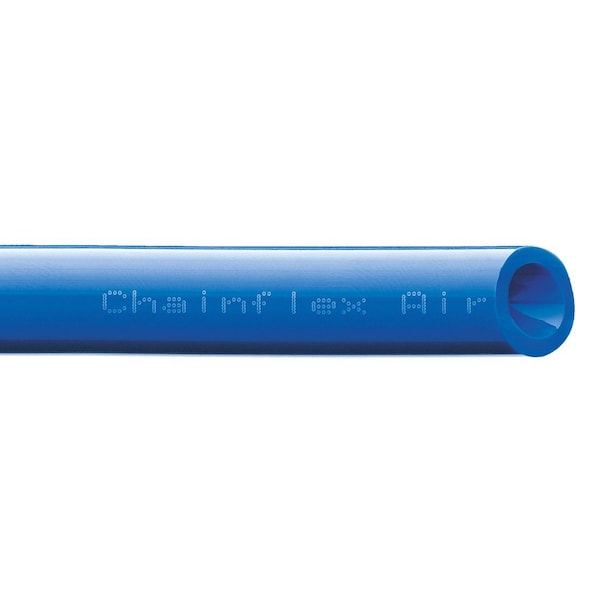

Pneumatic Tubing, PUR, 0.43 in dia, Bl
| Item | Pneumatic Tubing |
|---|---|
| Length | Order by the Foot |
| Standards | 2011/65/EU (RoHS Compliant-II), EN 60754 |
| Tubing Material | Polyurethane |
| Maximum Velocity - Unsupported | 33 fps |
| Tubing Color | Blue |
| Maximum Operating Pressure | 174 psi |
| Outside Diameter | 0.63 in |
| Maximum Operating Temperature - Flexible | 176 deg F |
| Product Type | Pneumatic Hose |
| Maximum Vacuum Pressure | -15 psi |
| Maximum Acceleration | 164 m/sq sec |
| Tubing Series | CAPU Series CFAIR |
| Minimum Bend Radius Factor - Flexible | 10 x OD |
| Minimum Operating Temperature - Flexible | -13 deg F |
| Maximum Operating Temperature - Fixed | 185 deg F |
| Minimum Bend Radius Factor - Fixed | 7.5 x OD |
| Inside Diameter | 0.43 in |
| Resistance Properties | Abrasion Resistant, Coolant Resistant, Oil and Grease Resistant |
| Minimum Operating Temperature - Fixed | -40 deg F |
| Maximum Velocity - Supported | 20 fps |
| Package Quantity | 1 |
