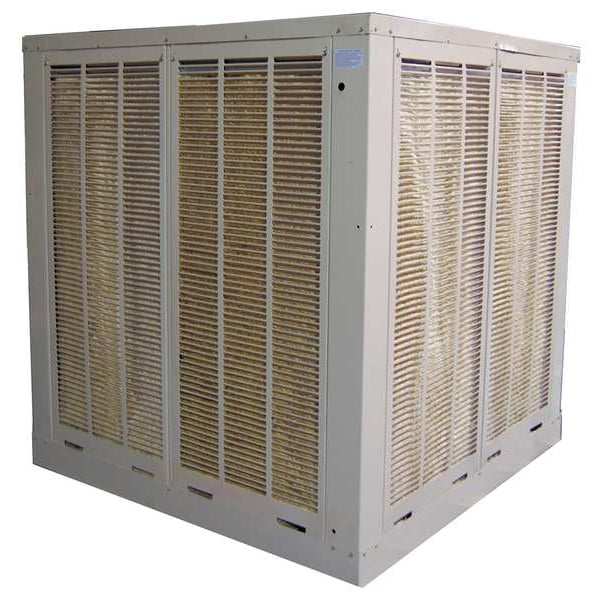

Ducted Evaporative Cooler 14,000 to 21,000 cfm, 4000 to 10,000 sq. ft., 33 gal, 1-1/2, 2, 3 or 5 HP
| Air Flow | 14,000 to 21,000 cfm |
|---|---|
| Voltage | 115 |
| Evaporative Cooler Item | Ducted Evaporative Cooler |
| Fill Type | Water Connection Required |
| Operating Weight | 983 lb |
| Color | Beige |
| Drive | Without |
| Depth | 62 in |
| Height | 59-3/4 in |
| Drive Type | Belt Drive |
| Motor HP | 1.5, 2, 3, 5 |
| Standards | AMCA Certified Rating, UL Listed |
| Duct Opening Length | 31-3/4 in |
| Evaporative Cooler Voltage | 230V AC |
| Duct Opening Width | 31-3/4 in |
| Media | Aspen |
| Speed | Variable |
| Discharge | Down |
| Power Cord Length | 8 ft |
| Water Connection | 3/8 in |
| Pad Thickness | 2 in |
| Item | Ducted Evaporative Cooler |
| Evaporative Cooler Cooling Capacity | 4000 to 10,000 sq. ft. |
| Pump Voltage | Not Applicable |
| Width | 62 in |
| Water Capacity | 33 gal |
| Phase | Single |
| Duty Rating | Commercial Grade |
| Number of Inlets for Outside Air | Multiple Inlet |
| Drive Package With Motor | Not Applicable |
| Cooling Capacity | 4000 to 10,000 sq. ft. |
| Coverage Area - Maximum | 10,000 sq ft |
| Coverage Area - Minimum | 4,000 sq ft |
| HP | Not Applicable |
| Airflow | 21,000 cfm |
| Connection Type | NPS |
| Includes Drive Package | Drive Package Not Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
