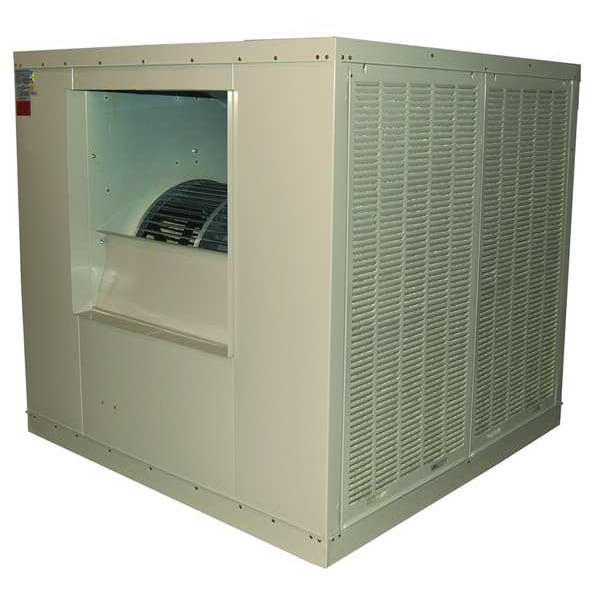

Ducted Evaporative Cooler 18,000 cfm, 10,000 sq. ft., 50 gal, 3 HP, Belt Drive
| Air Flow | 18,000 cfm |
|---|---|
| Voltage | 208-230/460 |
| Evaporative Cooler Cooling Capacity | 10,000 sq ft |
| Pad Thickness | 2 in |
| Evaporative Cooler Voltage | 208-230/460V AC |
| Water Connection | 3/8 in |
| Discharge | Side |
| Water Capacity | 50 gal |
| Material | Steel |
| Finish | Powder Coated |
| Media | Aspen |
| Motor HP | 3 |
| Evaporative Cooler Item | Ducted Evaporative Cooler with Motor |
| Duct Opening Length | 31-3/4 in |
| Width | 62 in |
| Height | 61-1/4 in |
| Pump Voltage | 115V AC |
| Operating Weight | 1,083 lb |
| Speed | 1 |
| Item | Ducted Evaporative Cooler |
| Amps | 10.6/9.6/4.8 A |
| Color | Beige |
| Depth | 62 in |
| Drive | With |
| Duct Opening Width | 31-3/4 in |
| Drive Type | Belt Drive |
| Includes | Bleed Off Kit, Float, Pulley, Pump |
| Standards | AMCA Certified Rating, UL Listed |
| Phase | Three |
| HP | 3 HP |
| Number of Inlets for Outside Air | Multiple Inlet |
| Drive Package With Motor | Assembly Required |
| Duty Rating | Commercial Grade |
| Number of Speeds | 1 |
| Airflow | 18,000 cfm |
| Coverage Area - Maximum | 10,000 sq ft |
| Includes Drive Package | Drive Package Included |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
