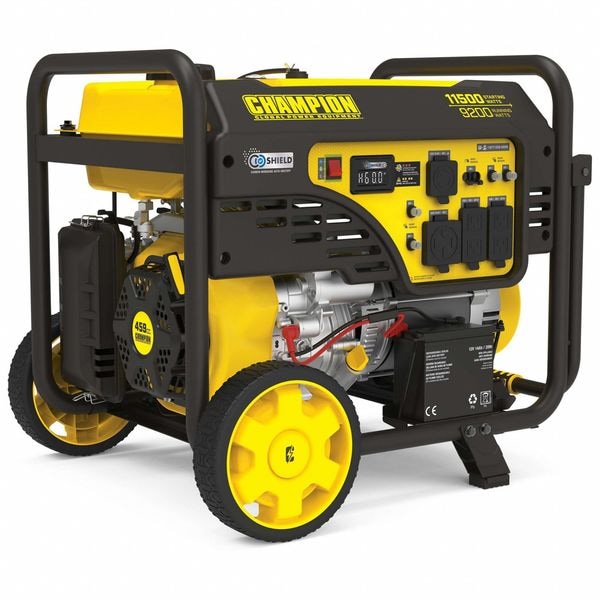

Portable Generator, Gasoline, 9,200 W Rated, 11,500 W Surge, Electric, Recoil Start, 120/240V AC
| Engine Brand | Champion |
|---|---|
| Generator Engine Brand | Champion |
| Item | Portable Generator |
| Fuel Type | Gasoline |
| Generator Fuel Type | Gasoline |
| Generator Rated Watts | 9,200 W |
| Surge Watts | 11,500 W |
| Rated Voltage | 120/240V AC |
| Generator Voltage | 120V, 240V |
| Starter Type | Recoil, Electric |
| Generator Starter Type | Recoil, Electric |
| Generator Amps | 38.3/47.9/76.7/95.8 |
| Generator Run Time @ 1/2 Load | 10 hr |
| Carbon Monoxide (CO) Sensor | Yes |
| CARB Compliant | Yes |
| Portable Generator Technology | CO Shield® |
| Outlets | GFCI 120V 20A Duplex (5-20R) (2), 120/240V 30A (L14-30R), 120/240V 50A (14-50R) |
| Engine Displacement | 459 cc |
| Includes | Engine Oil, Oil Funnel |
| Parallel Configuration Capable | No |
| Wheel Kit Included | Yes |
| Low Oil Shut Down | Yes |
| Generator Height | 26-3/32 in |
| Generator Mfr. Warranty Details | 3 yr (Limited) |
| Fuel Tank Capacity | 7.7 gal |
| Generator Outlets | 120/240V 30A (L14-30R), 120/240V 50A (14-50R), GFCI 120V 20A Duplex (5-20R) (2) |
| Engine Size | 459cc |
| Length | 29-3/32 in |
| Sound Level dB | 74 dBA |
| Noise Level | 74 dBA |
| Engine Oil Type | 10W-30 |
| Engine Type | 4-Cycle |
| Engine Oil Capacity | 1.1 qt |
| Wheel Type | Solid |
| Running Wattage - Propane (LPG) | Not Applicable |
| Rated Current @ 240V AC - Natural Gas (NG) | Not Applicable |
| Includes Fuel Gauge | Yes |
| Weight | 205 lb |
| Rated Current @ 120V AC - Gasoline/Diesel | 76.7 A |
| Inverter Frame Type | Not Applicable |
| Safety Features | Low Oil Shutdown |
| Air Cleaner Type | Foam |
| Maximum Current @ 120V AC - Propane (LPG) | Not Applicable |
| Standards | EPA, PGMA |
| Rated Current @ 120V AC - Natural Gas (NG) | Not Applicable |
| Run Time @ Full Load - Propane (LPG) | Not Applicable |
| Running Wattage - Gasoline/Diesel | 9,200 W |
| Circuit Breaker | Yes |
| Circuit Breakers Included | Yes |
| Includes GFCI Outlets | Yes |
| Overall Width | 26-1/8 in |
| Maximum Current @ 120V AC - Gasoline/Diesel | 76.7 A |
| Manufacturer Warranty | 3 yr |
| Overall Height | 26-1/8 in |
| Includes Wheel Kit | Yes |
| Starting Wattage - Propane (LPG) | Not Applicable |
| Maximum Current @ 240V AC - Natural Gas (NG) | Not Applicable |
| Overall Length | 29-1/8 in |
| Carbon Monoxide Protection | Carbon Monoxide Shutdown |
| Starting Wattage - Gasoline/Diesel | 11,500 W |
| Rated Current @ 120V AC - Propane (LPG) | Not Applicable |
| Run Time @ 1/4 Load - Propane (LPG) | Not Applicable |
| Run Time @ 1/2 Load - Propane (LPG) | Not Applicable |
| Rated Current @ 240V AC - Gasoline/Diesel | 38.3 A |
| Starting Wattage - Natural Gas (NG) | Not Applicable |
| Outlets Included | 14-50R, (2) 5-20R GFCI Duplex, L14-30R |
| Handle Type | Folding |
| Generator Technology | Conventional |
| Cylinder Material | Steel |
| Running Wattage - Natural Gas (NG) | Not Applicable |
| Rated Frequency | 60 Hz |
| Maximum Current @ 240V AC - Gasoline/Diesel | 38.3 A |
| Rated Current @ 240V AC - Propane (LPG) | Not Applicable |
| Maximum Current @ 240V AC - Propane (LPG) | Not Applicable |
| Wheel Size | 9-1/2 in |
| Run Time @ 1/2 Load - Gasoline/Diesel | 10 hr |
| Maximum Current @ 120V AC - Natural Gas (NG) | Not Applicable |
| Width | 26-3/32 in |
| Height | 26.1 in |
| Engine Oil Included | Yes |
| Gasoline Starting Amps at 240V | 47.9 A |
| Low Oil Shut-Off | Yes |
| Covered Outlets | Yes |
| Engine Speed | 3600 |
| Frequency | 60Hz |
| Gasoline Starting Amps at 120V | 95.8 A |
| Gasoline Running Amps at 120V | 76.7 A |
| Gasoline Running Watts | 9,200 W |
| Gasoline Running Amps at 240V | 38.3 A |
| Gasoline Tank Material | Steel |
| Gasoline Starting Watts | 11,500 W |
| EPA Certified | Yes |
| Automatic Voltage Regulation | Yes |
| Battery | Yes |
| Fuel Gauge | Yes |
| Wheel Diameter | 9.5‚in. |
| Covered Circuit Breakers | Yes |
| FEATURES | Electric start:Power up the 459cc Champion engine with the handy rocker switch, battery included.;Reliable and Powerful:At 11500 starting watts and 9200 running watts, enjoy up to 10 hours of run time on a full tank of gasoline with a noise level of 74 dBA from 23 feet;Covered Outlets:120/240V 30A locking, 120/240V 38A, and four 120V 20A GFCI outlets - Volt Guardâ„¢ built-in surge protector prevents overloads and keeps your appliances and equipment safe;Intelligauge:Keep track of voltage, frequency, session run time, and total run time to easily monitor output and track maintenance intervals;Champion Support:Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts |
| Wheels | Yes |
| Gasoline Run Time at 1/2 Load | 10‚h. |
| GFCI Outlets | Yes |
| What's included | Wheel Kit;Engine Oil;Oil Funnel |
| Voltmeter | Intelligauge |
| Gasoline Capacity | 7.7‚gal. |
| Package Quantity | 1 |
