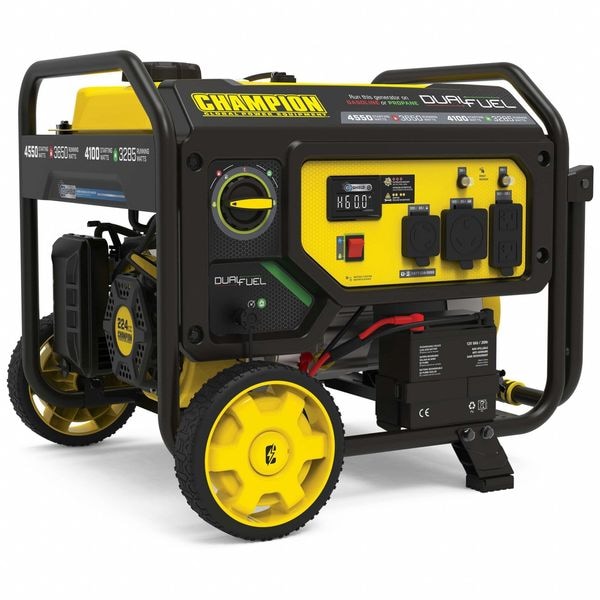

Portable Generator, Gasoline/Propane, 3,285 W/3,650 W Rated, 4,500 W Surge, Electric, Recoil Start
| Engine Brand | Champion |
|---|---|
| Generator Engine Brand | Champion |
| Item | Portable Generator |
| Fuel Type | Gasoline, Propane |
| Generator Fuel Type | Gasoline, Propane (LPG) |
| Generator Rated Watts | 3,285 W/3,650 W |
| Surge Watts | 4,500 W |
| Rated Voltage | 120V AC |
| Generator Voltage | 120V |
| Starter Type | Recoil, Electric |
| Generator Starter Type | Recoil, Electric |
| Generator Amps | 27.4/30.4/34.2/37.9 |
| Generator Run Time @ 1/2 Load | 10.5 hr/14 hr |
| Carbon Monoxide (CO) Sensor | Yes |
| CARB Compliant | Yes |
| Generator Mfr. Warranty Details | 3 yr (Limited) |
| Sound Level dB | 68 dBA |
| Engine Size | 224cc |
| Wheel Kit Included | Yes |
| Outlets | 120V 30A (TT-30R), 120V 30A Locking (L5-30R), 120V 20A Duplex (5-20R) |
| Portable Generator Technology | CO Shield®, Dual Fuel |
| Includes | Engine Oil, Oil Funnel, Propane (LPG) Hose |
| Engine Displacement | 224 cc |
| Fuel Tank Capacity | 4.7 gal |
| Parallel Configuration Capable | No |
| Generator Height | 22-3/16 in |
| Generator Outlets | 120V 20A Duplex (5-20R), 120V 30A (TT-30R), 120V 30A Locking (L5-30R) |
| Low Oil Shut Down | Yes |
| Length | 24-11/16 in |
| Engine Oil Capacity | 0.6 qt |
| Wheel Type | Solid |
| Noise Level | 68 dBA |
| Engine Type | 4-Cycle |
| Engine Oil Type | 10W-30 |
| Rated Current @ 120V AC - Propane (LPG) | 27.4 A |
| Includes GFCI Outlets | No |
| Starting Wattage - Natural Gas (NG) | Not Applicable |
| Overall Length | 24-11/16 in |
| Run Time @ 1/2 Load - Gasoline/Diesel | 14 hr |
| Standards | EPA, PGMA |
| Running Wattage - Propane (LPG) | 3,285 W |
| Wheel Size | 8 in |
| Rated Frequency | 60 Hz |
| Maximum Current @ 120V AC - Gasoline/Diesel | 37.9 A |
| Manufacturer Warranty | 3 yr |
| Starting Wattage - Propane (LPG) | 4,100 W |
| Maximum Current @ 240V AC - Natural Gas (NG) | Not Applicable |
| Generator Technology | Conventional |
| Overall Width | 25 in |
| Handle Type | Folding |
| Safety Features | Low Oil Shutdown |
| Rated Current @ 120V AC - Gasoline/Diesel | 30.4 A |
| Circuit Breaker | Yes |
| Circuit Breakers Included | Yes |
| Rated Current @ 120V AC - Natural Gas (NG) | Not Applicable |
| Inverter Frame Type | Not Applicable |
| Starting Wattage - Gasoline/Diesel | 4,550 W |
| Weight | 126.8 lb |
| Run Time @ 1/2 Load - Propane (LPG) | 10 hr 30 min |
| Rated Current @ 240V AC - Gasoline/Diesel | Not Applicable |
| Maximum Current @ 240V AC - Gasoline/Diesel | Not Applicable |
| Includes Wheel Kit | Yes |
| Running Wattage - Gasoline/Diesel | 3,650 W |
| Maximum Current @ 240V AC - Propane (LPG) | Not Applicable |
| Cylinder Material | Steel |
| Includes Fuel Gauge | Yes |
| Rated Current @ 240V AC - Propane (LPG) | Not Applicable |
| Air Cleaner Type | Foam |
| Running Wattage - Natural Gas (NG) | Not Applicable |
| Maximum Current @ 120V AC - Natural Gas (NG) | Not Applicable |
| Carbon Monoxide Protection | Carbon Monoxide Shutdown |
| Maximum Current @ 120V AC - Propane (LPG) | 34.2 A |
| Overall Height | 22-3/16 in |
| Outlets Included | 5-20R Duplex, L5-30R, TT-30R |
| Rated Current @ 240V AC - Natural Gas (NG) | Not Applicable |
| Width | 25 in |
| Height | 22.2 in |
| Gasoline Capacity | 4.7‚gal. |
| Frequency | 60Hz |
| Low Oil Shut-Off | Yes |
| Gasoline Starting Watts | 4,550 W |
| Propane Running Watts | 3,285 W |
| Gasoline Running Watts | 3,650 W |
| Propane Run Time at 1/2 Load | 10.5‚h. |
| Automatic Voltage Regulation | Yes |
| Propane Running Amps at 120V | 27.4 A |
| Covered Circuit Breakers | Yes |
| Covered Outlets | Yes |
| What's included | Propane (LPG) Hose;Wheel Kit;Engine Oil;Oil Funnel |
| Engine Speed | 3600 |
| Gasoline Starting Amps at 120V | 37.9 A |
| Engine Oil Included | Yes |
| Gasoline Run Time at 1/2 Load | 14‚h. |
| Gasoline Running Amps at 120V | 30.4 A |
| Wheels | Yes |
| Gasoline Tank Material | Steel |
| Propane Starting Watts | 4,100 W |
| FEATURES | Dual Fuel:Operate your 3650-watt portable generator right out of the box on either gasoline or propane, plus features CO Shield® carbon monoxide auto shutoff system;Electric Start:Power up the 224cc Champion engine with the handy rocker switch, battery included;Intelligauge:Keep track of voltage, frequency and run-time hours to easily monitor output and track maintenance intervals while the UL-recognized sensor uses an LED to indicate CO shutoff or fault;Powerful:At 4550 starting watts and 3650 running watts on gasoline and 4100 starting watts and 3285 running watts on propane, trust Volt Guard™ to protect your appliances from electrical voltage spikes;Champion Support:Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts |
| Voltmeter | Intelligauge |
| Propane Starting Amps at 120V | 34.2 A |
| Battery | Yes |
| EPA Certified | Yes |
| Wheel Diameter | 8‚in. |
| Fuel Gauge | Yes |
| Package Quantity | 1 |
