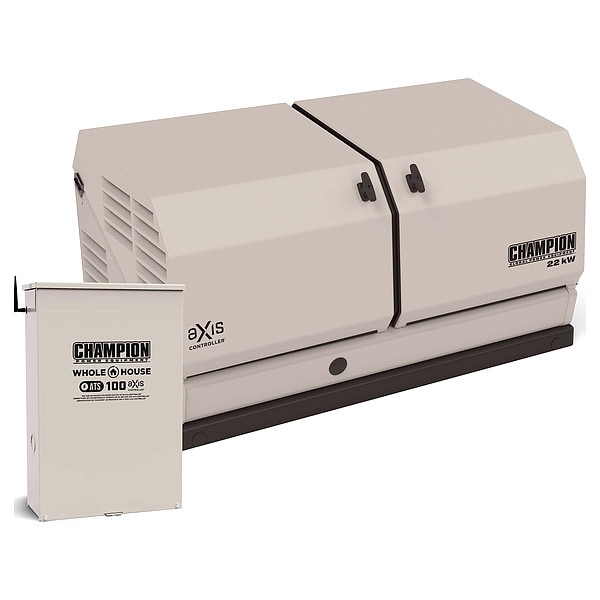

Standby Generator, Natural Gas/Propane, Single Phase, 22kW LP/19.8kW NG, Air Cooled
| Item | Standby Generator |
|---|---|
| Fuel Type | Natural Gas/Propane |
| Generator Fuel Type | Liquid Propane/Natural Gas |
| Phase | Single |
| Transfer Switch Included | Yes |
| Amps | 91.7 A/82.5 A |
| Rated Voltage | 120/240V AC |
| Generator Voltage | 120V AC/240V AC |
| Engine Cooling | Air |
| Standby Power Rating | 22kW LP/19.8kW NG |
| Carbon Monoxide (CO) Sensor | No |
| CARB Compliant | Yes |
| Hz | 60 Hz |
| Main Circuit Breaker | 100 A |
| Length | 54 in |
| kVA Rating | 22 kW |
| Enclosure Material | Steel |
| Standards | cETLus Listed, EPA Certified, UL |
| Includes | 100-Amp axis Automatic Transfer Switch, Battery Jumper Wire, Engine Oil, Gas Inlet Flex Hose, Gas Inlet Hose, Keys for Door Lock, Master Mixer Assembly |
| Height | 29 in |
| Power Factor | 1 |
| Width | 30-5/16 in |
| Rated Current @ 120V AC - Diesel | Not Applicable |
| Battery CCA Rating | 540 CCA/525 CCA |
| Running Wattage - Propane (LPG) | 22,000 W |
| Service Rated Transfer Switch | Yes |
| Overall Length | 54 in |
| Natural Gas (NG) Consumption @ Full Load | 270.2 cfh |
| Starter Type | 24V DC |
| Transfer Switch Coverage | Whole House |
| Transfer Switch NEMA Enclosure Rating | 3R |
| Manufacturer Warranty | 10 yr |
| Overall Height | 29 in |
| Safety Features | Low Oil Shutdown |
| Running Wattage - Natural Gas (NG) | 19.8 kW |
| Rated Current @ 240V AC - Propane (LPG) | 91.7 A |
| 12V DC Battery Charger | No |
| Engine Brand | Champion |
| Propane (LPG) Consumption @ Full Load | 3.6 gph |
| Rated Frequency | 60 Hz |
| Engine Speed | 3,600 RPM |
| Running Wattage - Diesel | Not Applicable |
| Rated Current @ 120V AC - Natural Gas (NG) | 165 A |
| Rated Current @ 120V AC - Propane (LPG) | 183.4 A |
| Engine Displacement | 999 cc |
| Engine Type | 4-Cycle |
| Exercise Cycle Duration | 15 min |
| Rated Current @ 240V AC - Diesel | Not Applicable |
| Apparent Power Rating | 22 kW |
| Overall Width | 30-5/16 in |
| Rated Current @ 240V AC - Natural Gas (NG) | 82.5 A |
| Propane (LPG) Consumption @ 1/2 Load | 2 gph |
| Natural Gas (NG) Consumption @ 1/2 Load | 173.4 cfh |
| Includes Battery | Yes |
| Engine Oil Type | Mobil 1 5W-30 Full Synthetic |
| Engine Oil Capacity | 3 qt |
| Noise Level | 67 dBA |
| Transfer Switch Current Rating | 100 A |
| Battery Group Number | Group 26 |
| Package Quantity | 1 |
