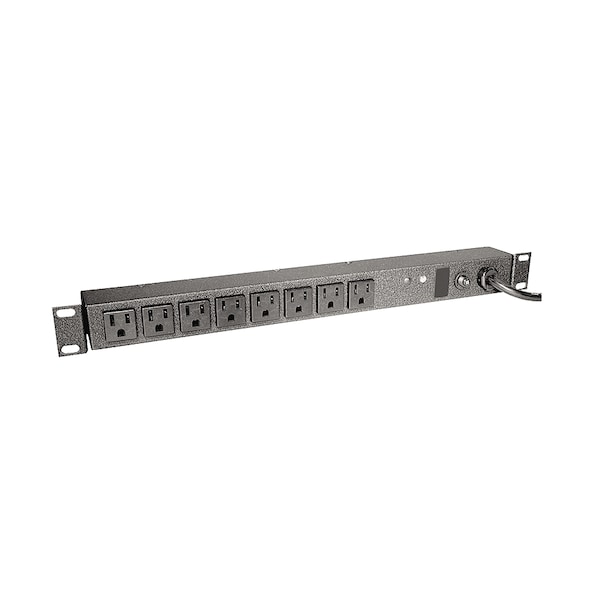

BASIC HORIZONTAL PWR STRIP, SGL PHASE, 125V, 20A, 8-RECPT
| Type | Power Strip |
|---|---|
| Number of Outlets | 8 |
| Cord Length | 10 ft |
| Color | Black |
| Dimensions | 36 mm D x 35.56 mm H |
| Circuit Breaker | Yes |
| NEMA Plug Configuration | 5-20P |
| Housing Material | Steel |
| Voltage | 110 to 125V |
| Height | 35.56 mm |
| For Use With | Cabinet Compatibility 1U & Higher |
| Max. Amps | 20 |
| Features | (1) 15A Circuit Breaker |
| NEMA Receptacle Configuration | 5-20R |
| Phase | 1 |
| Depth | 36 mm |
| Compatibility | Chatsworth Products:F-Series TeraFrame Cabinet System, N-Series TeraFrame Network Cabinet, Enhanced SteelFrame Cabinet, M-Series MegaFrame Cabinet System, C-Series SlimFrame Cabinet System, E-Series ISP Co-Location Cabinet System, T-Series SteelFrame Cabinet System, Seismic Frame Cabinet System, Universal Rack, Standard Rack, 6" Deep Standard Rack, CPI Wall Racks, CPI Wall Cabinets, QuadraRack 4-Post Frame, QuadraRack Server Frame, Adjustable QuadraRack, Adjustable ServerRack, Adjustable Rail QuadraRack, Adjustable Rail ServerRack |
| Product Type | Power Strip |
| Maximum Frequency | 60 Hz |
| Product Name | 8-Outlets Power Strip |
| Receptacles | 8 x NEMA 5-20R |
| Plug/Connector Type | NEMA 5-20P |
| Package Contents | 8-Outlets Power Strip, 19" EIA Rack Mount Brackets |
| Input Voltage | 125 V AC |
| Form Factor | Horizontal |
| Maximum Input Current | 20 A |
| Package Quantity | 1 |
