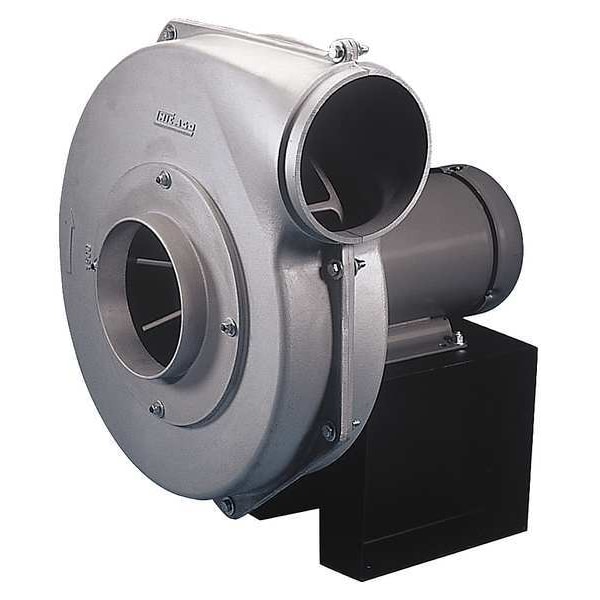

High Pressure Blower, Radial Blade, 1/2 HP
| Item | High Pressure Blower |
|---|---|
| Type | Radial Blade |
| Wheel Dia. (In.) | 8 |
| Voltage | 230/460 |
| Motor HP | 0.5 |
| Rotation | CW |
| Dimension S (In.) | 4-7/8 |
| Max. Blower RPM | 3,600 RPM |
| Motor Insulation | Class F |
| Dimension E (In.) | 3-3/16 |
| Bearing Type | Regreasable Ball |
| Motor Frame | 56C |
| Phase | 3 |
| Max. Inlet Temp. (Deg. F) | 150 |
| Dimension R (In.) | 6-1/2 |
| Dimension T (In.) | 1-1/8 |
| CFM @ 1.000-In. SP | 281 |
| Wheel Width (In.) | 2-3/4 |
| dBA @ 5 Feet | 73 dBA |
| Motor RPM | 3,600 RPM |
| Dimension P (In.) | 5-5/8 |
| Inlet Dia. (In.) | 4 |
| Max. Ambient Temp. (F) | 120 |
| Full Load Amps | 0.87 A |
| Dimension H (In.) | 14-1/4 |
| Dimension F (In.) | 2-15/16 |
| CFM @ 3.000-In. SP | 184 |
| Dimension C (In.) | 4 |
| Shaft Dia. (In.) | 5/8 |
| Housing Material | Aluminum |
| Discharge Width (In.) | 4 |
| Dimension B (In.) | 1 |
| Blower RPM | 3,500 RPM |
| Housing Width (In.) | 4 |
| Wheel Material | Aluminum |
| Dimension N (In.) | 1-1/8 |
| Dimension G (In.) | 12-3/16 |
| Housing Height (In.) | 13-7/16 |
| Motor Type | Three Phase |
| Dimension D (In.) | 9-3/8 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Discharge Height (In.) | 4 |
| Housing Length (In.) | 10-1/4 |
| Dimension M (In.) | 4-3/8 |
| CFM @ 2.000-In. SP | 252 |
| Hz | 60 |
| Motor HP Range | 1/2 |
| Maximum Fan Speed | 3,600 rpm |
| Outlet Shape | Square |
| Wheel Diameter | 8 in |
| Housing Width | 4 in |
| Outlet Height | 4 in |
| Flange Size | Not Applicable |
| Maximum Inlet Air Temperature | 150 deg F |
| Minimum Fan Speed | 3,500 rpm |
| Sound Level | 73 dBA @ 5 ft |
| Motor Speed | 3,600 rpm |
| Motor Frame Designation | 56C |
| Inlet Diameter | 4 in |
| Outlet Diameter | Not Applicable |
| Airflow @ 1.000 in SP | 281 cfm |
| Airflow @ 2.000 in SP | 252 cfm |
| Shaft Diameter | 5/8 in |
| Wheel Width | 2-3/4 in |
| Motor Horsepower | 0.5 HP |
| Housing Depth | 10-1/4 in |
| Housing Height | 13-7/16 in |
| Nameplate Voltage | 230/460V AC |
| Outlet Width | 4 in |
| Motor Insulation Class | F |
| Wheel Type | Radial |
| Flange Type | Non-Flanged |
| Number of Inlets | 1 |
| Current | 0.87 A |
| Frequency | 60 Hz |
| Airflow @ 3.000 in SP | 184 cfm |
| Maximum Ambient Temperature | 120 deg F |
| OEM Replacement | No |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
