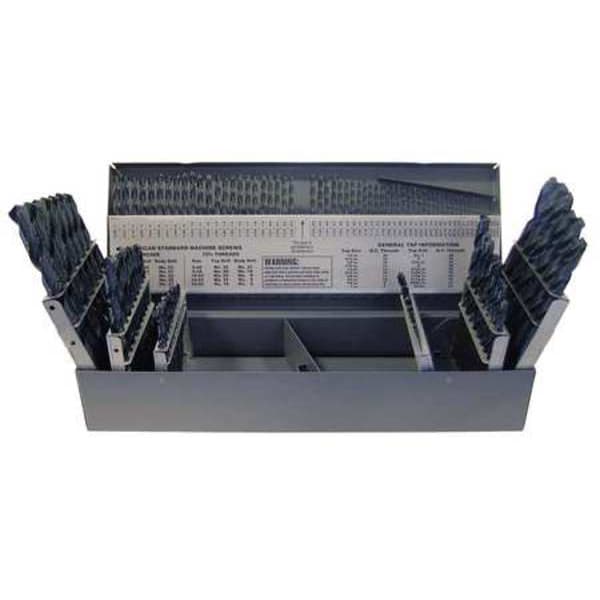

115PC 135 Degree Heavy-Duty Jobber Lngth Drill Set Chicago-Latrobe 150ASP-TN TiN HSS 1/16-1/2, A-Z, #1-#60
| Item | Jobber Drill Bit Set |
|---|---|
| Number of Pieces | 115 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 135 deg |
| Drill Bit Material | High Speed Steel |
| Includes | Metal Drill Index |
| Drill Bit Size | #60 to #1, 1/16 in -1/2 in by 1/64 in, A-Z |
| Point Type | P3 Split Point |
| Drill Bit Grouping | Drill Bit Set |
| Shank Dia. | #60 to #1, 1/16 in to 1/2 in, A to Z |
| Sizes Included | 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2", #60-#1, A-Z |
| Drill Bit Dimension Type | Fractional Inch, Wire, Letter |
| List Number | 150ASP |
| Standards | NAS 907 Type B |
| Depth x Dia. Ratio | 4 xD |
| Drill Bit Sizes Included | #10, #11, #12, #13, #14, #15, #16, #17, #18, #19, #2, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #3, #30, #31, #32, #33, #34, #35, #36, #37, #38, #39, #4, #4-1/2, #40, #41, #42, #43, #44, #45, #46, #47, #48, #49, #5, #50, #51, #52, #53, #54, #55, #56, #57, #58, #59, #6, #60, #7, #8, #9, 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in, A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z |
| Material - Machining | High Speed Steel |
| Primary Material Application | All Materials |
| Finish - Machining | TiN |
| Aircraft Drill | Yes |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Point Type | Split Point |
| Smallest Drill Bit Size | 1/16 in |
| Measurement System | Fractional Inch, Wire, Letter |
| Largest Drill Bit Size | 1/2 in |
| Shank Type - Machining | Straight |
| Number of Drill Bits | 115 |
| Drill Length Class | Length |
| Material Grade - Machining | Heavy Duty |
| Flute Type | Spiral |
| Drill Bit Case Type | Metal Drill Index |
| Package Quantity | 1 |
