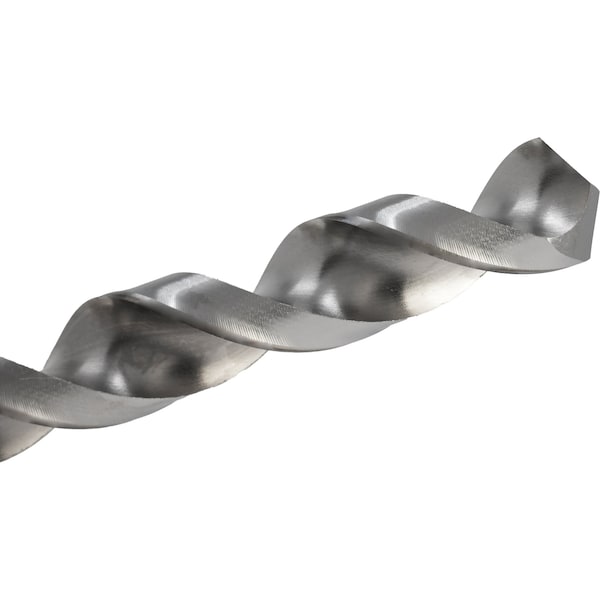

118 Degree Fast Spiral Jobber Length Drill Chicago-Latrobe 150B Bright HSS RHS/RHC Let-U
| Item | Jobber Length Drill Bit |
|---|---|
| Overall Length | 5 in |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | U |
| Number of Flutes | 2 |
| Shank Dia. | 23/64 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Finish - Machining | Bright |
| Shank Type - Machining | Straight |
| Standards | ANSI |
| Drill Bit Grouping | Drill Bit |
| Flute Type | Fast Spiral |
| Flute Length | 3-5/8 in |
| Drill Bit Dimension Type | Letter |
| Application | Chip Ejection, Carbon Steel, Mild Steel, Drilling Low-Tensile Materials |
| Decimal Equivalent | 0.368 |
| List Number | 150B |
| Depth:Dia. Ratio | 4 xD |
| Coolant Fed | Non-Coolant Through |
| Shank Length | 1-3/8 in |
| Shank Size | 0.368 |
| Diameter | 0.368 |
| Drill Style | Jobber Drill |
| Measurement System | Letter |
| Helix Angle | 35 Degrees to 45 Degrees |
| Primary Material Application | Aluminum, Steel, Non-Ferrous Material |
| Drill Bit Point Type | Conventional Point |
| Drill Length Class | Jobber Length |
| Maximum Drilling Depth | 2-23/32 in |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Series | 150B |
| Primary Material Application ISO Code | P, N |
| Material Grade - Machining | General Purpose |
| Drill Point Length | 0 in |
| Spiral Direction | Right Hand |
| Web Thinning | Thinned |
| Sheeter Drill | No |
| Number of Coolant Holes | 0 |
| Aircraft Drill | No |
| Package Quantity | 1 |
