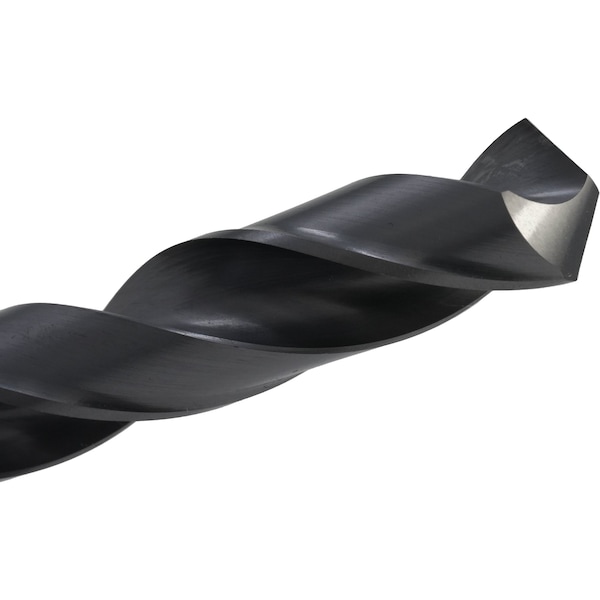

118 Degree General Purpose Jobber Length Drill Chicago-Latrobe 150 Steam Oxide HSS RHS/RHC #74
| Item | Jobber Length Drill Bit |
|---|---|
| Overall Length | 1 in |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | #74 |
| Number of Flutes | 2 |
| Shank Dia. | 1/64 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Finish - Machining | Black Oxide |
| Shank Type - Machining | Straight |
| List Number | 150 |
| Flute Length | 1/4 in |
| Drill Bit Grouping | Drill Bit |
| Flute Type | Spiral |
| Drill Bit Dimension Type | Wire |
| Decimal Equivalent | 0.0225 |
| Standards | ANSI |
| Application | For Carbon Steel and Cast Iron. |
| Drill Style | Jobber Drill |
| Shank Size | 0.0225 |
| Measurement System | Wire |
| Shank Length | 3/4 in |
| Diameter | 0.0225 |
| Coolant Fed | Non-Coolant Through |
| Depth:Dia. Ratio | 4 xD |
| Helix Angle | 21 Degrees to 34 Degrees |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application ISO Code | P, K |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0068 in |
| Maximum Drilling Depth | 3/16 in |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Spiral Direction | Right Hand |
| Series | 150 |
| Material Grade - Machining | General Purpose |
| Drill Bit Point Type | Conventional Point |
| Number of Coolant Holes | 0 |
| Aircraft Drill | No |
| Sheeter Drill | No |
| Web Thinning | Thinned |
| Package Quantity | 1 |
