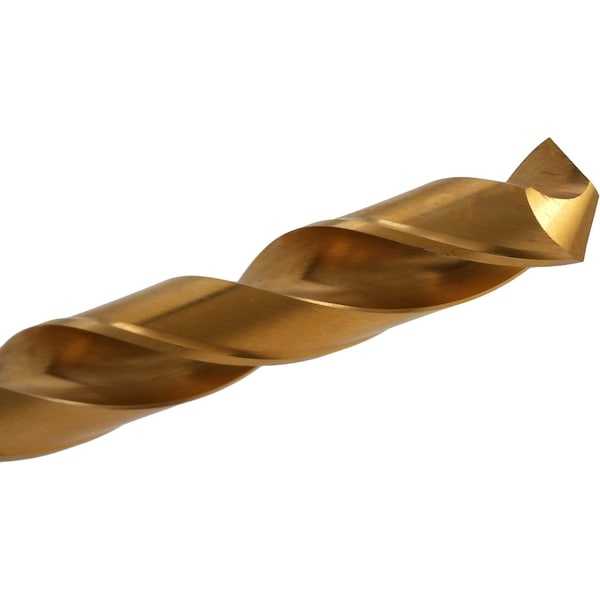

118 Degree General Purpose Jobber Length Drill Chicago-Latrobe 150-TN TiN HSS RHS/RHC 1/64
| Item | Jobber Length Drill Bit |
|---|---|
| Overall Length | 3/4 in |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 1/64 in |
| Number of Flutes | 2 |
| Shank Dia. | 1/64 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Finish - Machining | TiN |
| Shank Type - Machining | Straight |
| Application | Carbon Steel, Cast Iron, Non-Ferrous Materials |
| List Number | 150-TN |
| Standards | ANSI |
| Drill Bit Dimension Type | Fractional Inch |
| Decimal Equivalent | 0.0156 |
| Drill Bit Grouping | Drill Bit |
| Flute Length | 3/16 in |
| Flute Type | Spiral |
| Depth:Dia. Ratio | 4 xD |
| Coolant Fed | Non-Coolant Through |
| Drill Style | Jobber Drill |
| Shank Size | 0.016 |
| Diameter | 0.016 |
| Measurement System | Fractional Inch |
| Shank Length | 9/16 in |
| Helix Angle | 21 Degrees to 34 Degrees |
| Primary Material Application | Cast Iron, Steel |
| Drill Length Class | Jobber Length |
| Material Grade - Machining | High Performance |
| Primary Material Application ISO Code | P, K |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Drill Bit Point Type | Conventional Point |
| Series | 15TN |
| Drill Point Length | 0.0047 in |
| Maximum Drilling Depth | 1/8 in |
| Spiral Direction | Right Hand |
| Aircraft Drill | No |
| Web Thinning | Thinned |
| Number of Coolant Holes | 0 |
| Sheeter Drill | No |
| Package Quantity | 1 |
