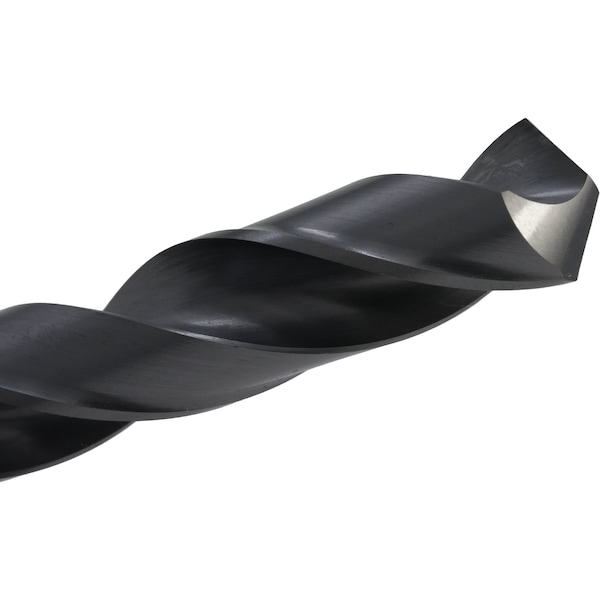

118 Degree General Purpose Taper Length Drill Chicago-Latrobe 120 Steam Oxide HSS RHS/RHC #77
| Item | Taper Length Drill Bit |
|---|---|
| Number of Flutes | 2 |
| Overall Length | 1-1/2 in |
| Flute Length | 5/16 in |
| Drill Bit Size | #77 |
| Drill Bit Point Angle | 118 deg |
| Cutting Direction | Right Hand |
| Drill Bit Finish | Black Oxide |
| Drill Bit Material | High Speed Steel |
| Shank Dia. | 1/64 in |
| Decimal Equivalent | 0.018 |
| Application | For Metalworking |
| Drill Bit Grouping | Drill Bit |
| Point type | Radial |
| Flute Type | Spiral |
| Grade | General Purpose |
| Coolant Through | No |
| Shank Type | Straight |
| List Number | 120 |
| Sizes Included | #77 |
| Drill Bit Dimension Type | Wire |
| Standards | ANSI |
| Depth x Dia. Ratio | 4 xD |
| Depth:Dia. Ratio | 4 xD |
| Coolant Fed | Non-Coolant Through |
| Material - Machining | High Speed Steel |
| Drill Length Class | Taper Length |
| Series | 120 |
| Drill Bit Point Type | Conventional Point |
| Drill Point Length | 0.0054 in |
| Primary Material Application ISO Code | P, K |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Finish - Machining | Black Oxide |
| Helix Angle | 28 Degrees |
| Shank Type - Machining | Straight |
| Shank Length | 1-3/16 in |
| Maximum Drilling Depth | 5/16 in |
| Primary Material Application | Cast Iron, Steel |
| Spiral Direction | Right Hand |
| Material Grade - Machining | General Purpose |
| Measurement System | Wire |
| Package Quantity | 1 |
