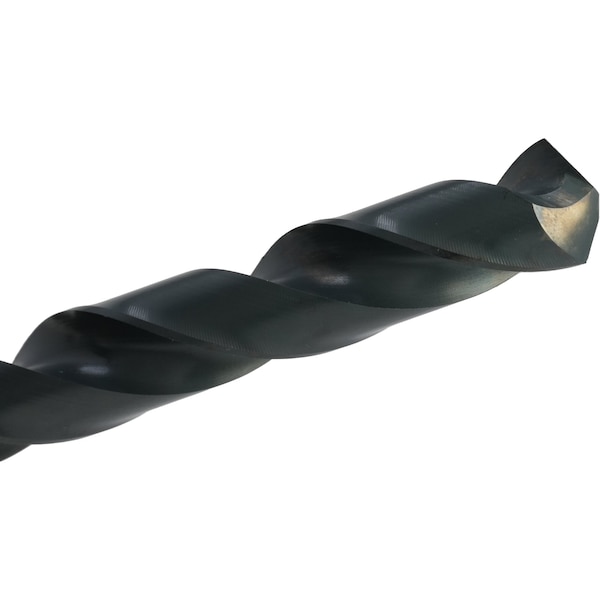

118 Degree Heavy-Duty Extra Long Drill Chicago-Latrobe 120X Steam Oxide HSS RHS/RHC 15/64x12IN
| Item | Extra Long Drill Bit |
|---|---|
| Shank Type | Straight |
| Material | High Speed Steel |
| Shank Dia. | 15/64 in |
| Cutting Direction | Right Hand |
| Flute Length | 9 in |
| Maximum Drilling Depth | 9 in |
| Overall Length | 12 in |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| Shank Type - Machining | Straight |
| List Number | 120X |
| Drill Bit Material | Steel |
| Drill Bit Size | 15/64 in |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Point Angle | 118 Degrees |
| Depth x Dia. Ratio | 4 xD |
| Point Type | Notched |
| Drill Bit Finish | Black Oxide |
| Depth:Dia. Ratio | 4 xD |
| Grade | General Purpose |
| Application | For Drilling Carbon Steel, Alloy Steel and Cast Iron in Long Reach Applications |
| Decimal Equivalent | 0.2344 |
| Coolant Through | No |
| Drill Bit Grouping | Drill Bit |
| Flute Type | Spiral |
| Shank Size | 0.234" |
| Bit Dia. | 15/64 in |
| Standards | Not Rated |
| Coolant Fed | Non-Coolant Through |
| Series | 120X |
| Helix Angle | 28 deg |
| Material - Machining | High Speed Steel |
| Primary Material Application | Cast Iron, Steel |
| Shank Length | 3 in |
| Finish - Machining | Black Oxide |
| Primary Material Application ISO Code | P, K |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Point Length | 0.0704 in |
| Spiral Direction | Right Hand |
| Drill Bit Point Type | Notched Point |
| Material Grade - Machining | General Purpose |
| Drill Length Class | Extra Long |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
