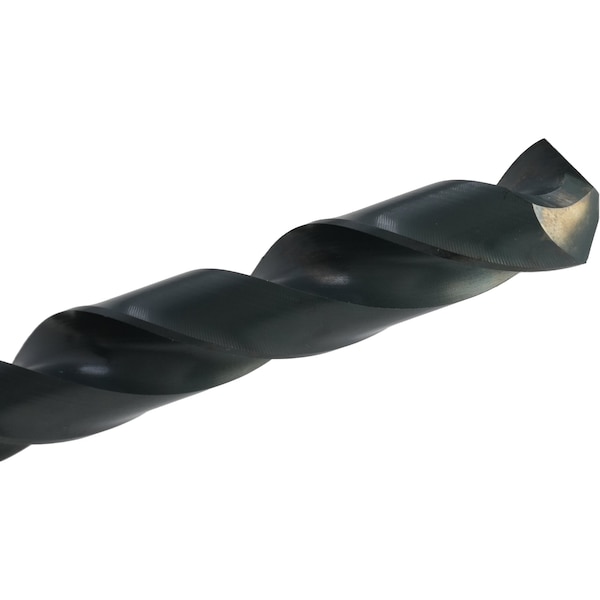

118 Degree Heavy-Duty Extra Long Drill Chicago-Latrobe 120X Steam Oxide HSS RHS/RHC 5/32x12IN
| Item | Extra Long Drill Bit |
|---|---|
| Shank Type | Straight |
| Material | High Speed Steel |
| Shank Dia. | 9/64 in |
| Cutting Direction | Right Hand |
| Flute Length | 9 in |
| Maximum Drilling Depth | 9 in |
| Overall Length | 12 in |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| List Number | 120X |
| Coolant Through | No |
| Drill Bit Material | Steel |
| Grade | General Purpose |
| Decimal Equivalent | 0.1563 |
| Shank Type - Machining | Straight |
| Drill Bit Size | 5/32 in |
| Application | For Drilling Carbon Steel, Alloy Steel and Cast Iron in Long Reach Applications |
| Drill Bit Finish | Black Oxide |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Depth:Dia. Ratio | 4 xD |
| Drill Bit Point Angle | 118 Degrees |
| Flute Type | Spiral |
| Depth x Dia. Ratio | 4 xD |
| Standards | Not Rated |
| Bit Dia. | 5/32 in |
| Shank Size | 0.156" |
| Coolant Fed | Non-Coolant Through |
| Series | 120X |
| Helix Angle | 28 deg |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Spiral Direction | Right Hand |
| Primary Material Application ISO Code | P, K |
| Measurement System | Fractional Inch |
| Drill Bit Point Type | Notched Point |
| Drill Length Class | Extra Long |
| Shank Length | 3 in |
| Finish - Machining | Black Oxide |
| Drill Point Length | 0.0469 in |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Primary Material Application | Cast Iron, Steel |
| Point type | Notched |
| Package Quantity | 1 |
