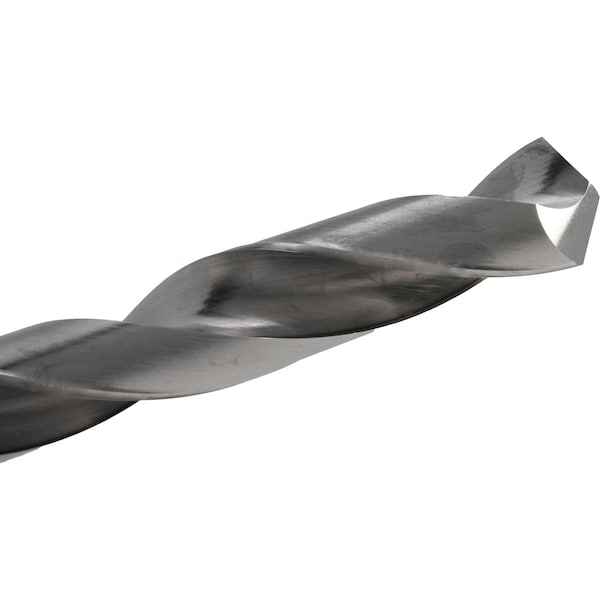

118 Degree Slow Spiral Jobber Length Drill Chicago-Latrobe 150C Bright HSS RHS/RHC 5/64
| Item | Jobber Length Drill Bit |
|---|---|
| Overall Length | 2 in |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 5/64 in |
| Number of Flutes | 2 |
| Shank Dia. | 1/16 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Finish - Machining | Bright |
| Shank Type - Machining | Straight |
| Drill Bit Dimension Type | Fractional Inch |
| Flute Length | 1 in |
| Application | Chip Ejection, Brass, Bronze, Non-Ferrous Materials, Hard Rubber, Fiber, Dura-Plastics, Thermoplastics |
| Standards | ANSI |
| Drill Bit Grouping | Drill Bit |
| List Number | 150C |
| Decimal Equivalent | 0.0781 |
| Flute Type | Slow Spiral |
| Shank Size | 0.0781 |
| Drill Style | Jobber Drill |
| Shank Length | 1 in |
| Diameter | 0.078125 |
| Measurement System | Fractional Inch |
| Coolant Fed | Non-Coolant Through |
| Depth:Dia. Ratio | 4 xD |
| Helix Angle | 10 Degrees to 20 Degrees |
| Primary Material Application | Non-Ferrous Material, Aluminum |
| Spiral Direction | Right Hand |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 3/4 in |
| Drill Bit Point Type | Conventional Point |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0235 in |
| Series | 150C |
| Primary Material Application ISO Code | N |
| Web Thinning | Thinned |
| Aircraft Drill | No |
| Sheeter Drill | No |
| Number of Coolant Holes | 0 |
| Package Quantity | 1 |
