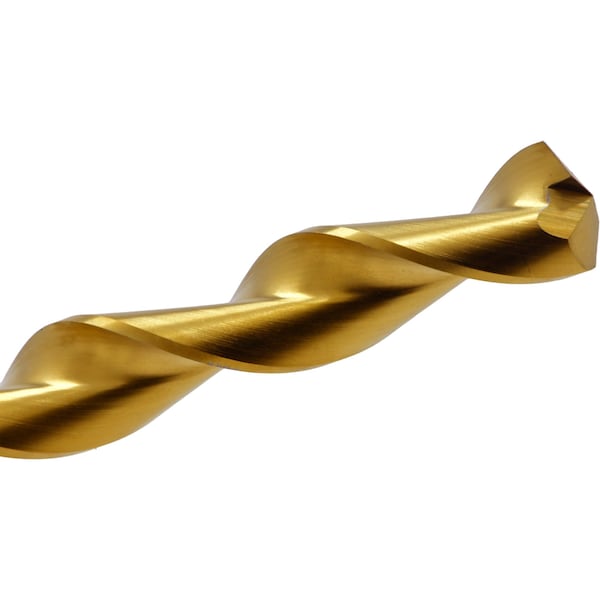

135 Degree Deep Hole Parabolic Taper Length Drill Chicago-Latrobe 120DH-TN TiN HSS RHS/RHC 21/64
| Item | Taper Length Drill Bit |
|---|---|
| Number of Flutes | 2 |
| Overall Length | 6-1/2 in |
| Flute Length | 5-1/4 in |
| Drill Bit Size | 21/64 in |
| Drill Bit Point Angle | 135 deg |
| Cutting Direction | Right Hand |
| Drill Bit Finish | TiN |
| Drill Bit Material | High Speed Steel |
| Shank Dia. | 21/64 in |
| Decimal Equivalent | 0.3281 |
| Application | For Metalworking |
| Coolant Through | No |
| Standards | ANSI |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Flute Type | Parabolic |
| Grade | Heavy Duty |
| Point Type | Notched |
| List Number | 120DH-TN |
| Sizes Included | 21/64" |
| Shank Type | Straight |
| Depth x Dia. Ratio | 8 xD |
| Depth:Dia. Ratio | 8 xD |
| Coolant Fed | Non-Coolant Through |
| Material Grade - Machining | Heavy Duty |
| Shank Type - Machining | Straight |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Steel, Magnesium |
| Maximum Drilling Depth | 5-1/4 in |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Helix Angle | 40 Degrees |
| Drill Point Length | 0.068 in |
| Shank Length | 1-1/4 in |
| Material - Machining | High Speed Steel |
| Drill Bit Point Type | Notched Point |
| Measurement System | Fractional Inch |
| Finish - Machining | TiN |
| Drill Length Class | Taper Length |
| Series | 120DH-TN |
| Primary Material Application ISO Code | P, N |
| Spiral Direction | Right Hand |
| Package Quantity | 1 |
