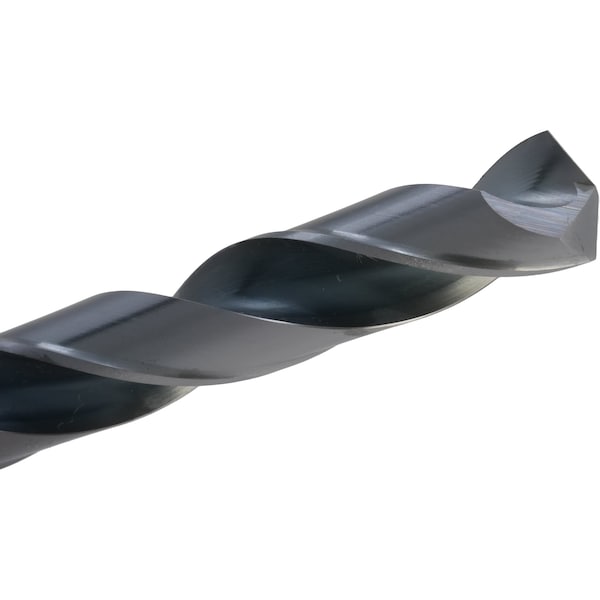

135 Degree Heavy-Duty Jobber Length Drill Chicago-Latrobe 150ASP-TC TiCN HSS RHS/RHC 7/16
| Item | Jobber Length Drill Bit |
|---|---|
| Overall Length | 5-1/2 in |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 7/16 in |
| Number of Flutes | 2 |
| Shank Dia. | 7/16 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Finish - Machining | TiCN |
| Shank Type - Machining | Straight |
| Decimal Equivalent | 0.4375 |
| Flute Length | 4-1/16 in |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Dimension Type | Fractional Inch |
| Depth:Dia. Ratio | 4 xD |
| List Number | 150ASP-TC |
| Standards | NAS 907 Type B |
| Drill Style | Jobber Drill |
| Measurement System | Fractional Inch |
| Shank Length | 1-7/16 in |
| Diameter | 0.4375 |
| Shank Size | 0.4375 |
| Flute Type | Spiral |
| Coolant Fed | Non-Coolant Through |
| Helix Angle | 21 Degrees to 34 Degrees |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Maximum Drilling Depth | 3-3/64 in |
| Series | 150ASP-TC |
| Aircraft Drill | Yes |
| Drill Bit Point Type | Split Point |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Spiral Direction | Right Hand |
| Drill Point Length | 0.0906 in |
| Primary Material Application ISO Code | P, K, M |
| Drill Length Class | Jobber Length |
| Sheeter Drill | No |
| Web Thinning | Thinned |
| Number of Coolant Holes | 0 |
| Package Quantity | 1 |
