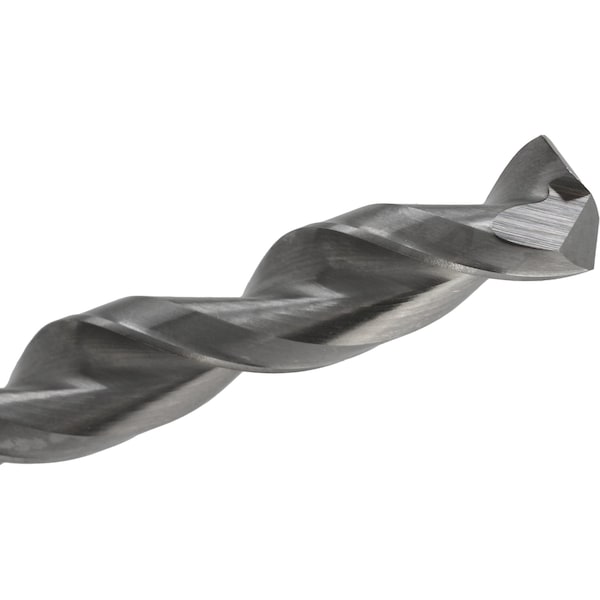

135 Degree Wide Land Parabolic Jobber Length Drill Chicago-Latrobe 150WLP Bright HSS RHS/RHC #6
| Item | Jobber Length Drill Bit |
|---|---|
| Overall Length | 3-3/4 in |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | #6 |
| Number of Flutes | 2 |
| Shank Dia. | 13/64 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Finish - Machining | Bright |
| Shank Type - Machining | Straight |
| List Number | 150WLP |
| Standards | ANSI |
| Decimal Equivalent | 0.204 |
| Flute Length | 2-1/2 in |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Dimension Type | Wire |
| Application | Carbon Steel, Tool Steel, Alloy Steel, Free-Machining Steel |
| Flute Type | Spiral |
| Coolant Fed | Non-Coolant Through |
| Depth:Dia. Ratio | 8 xD |
| Drill Style | Jobber Drill |
| Shank Size | 0.204 |
| Measurement System | Wire |
| Shank Length | 1-1/4 in |
| Diameter | 0.204 |
| Helix Angle | 35 Degrees to 45 Degrees |
| Primary Material Application | Steel |
| Drill Point Length | 0.0422 in |
| Spiral Direction | Right Hand |
| Maximum Drilling Depth | 1-7/8 in |
| Drill Bit Point Type | Split Point |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Primary Material Application ISO Code | P |
| Material Grade - Machining | High Performance |
| Series | 150WLP |
| Aircraft Drill | No |
| Number of Coolant Holes | 0 |
| Web Thinning | Thinned |
| Sheeter Drill | No |
| Package Quantity | 1 |
