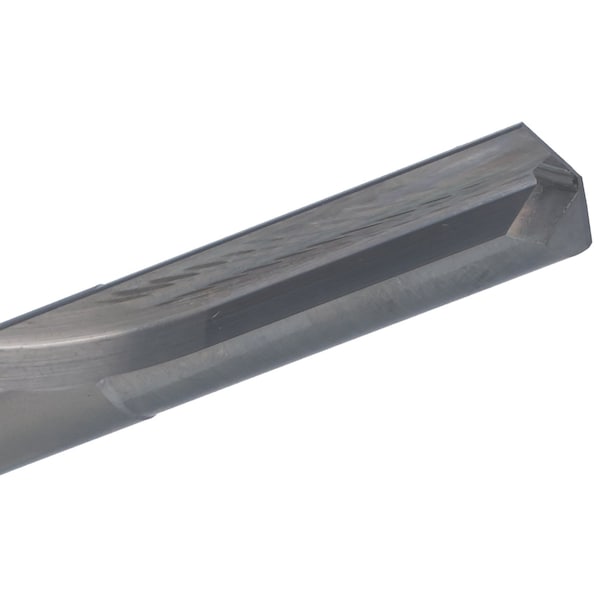

140 Degree Solid Carbide Straight Flute Drill Chicago-Latrobe 769 Bright Carbide RHC 1/4-E
| Item | Straight Flute Drill Bit |
|---|---|
| Decimal Equivalent | 0.25 |
| Material | SOLID CARBIDE |
| Finish | Uncoated |
| Shank Dia. | 1/4 in |
| Overall Length | 2 1/2 in |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Flute Length | 1 3/8 in |
| Maximum Drilling Depth | 1 in |
| Application | Non-Ferrous Material, Hardened Material, Stainless Steel And Normally Limited To 2 x Diameter Drilling Depths |
| Depth:Dia. Ratio | 4 xD |
| Drill Bit Size | 1/4 in |
| Drill Point (Deg.) | 140 |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 140 Degrees |
| List Number | 769 |
| Drill Bit Material | Carbide |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Bright |
| Point Type | General Purpose |
| Fractional Size (In.) | 1/4 |
| Depth x Dia. Ratio | 4 xD |
| Helix Angle | 40 deg |
| Primary Material Application ISO Code | H, M, K, S |
| Flute Type | Straight |
| Primary Material Application | Cast Iron, Hardened Steel, Stainless Steel, Nickel, Titanium |
| Drill Bit Point Type | 4 Facet Point |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Aircraft Drill | No |
| Drill Point Length | 0.0455 in |
| Shank Length | 1-1/8 in |
| Finish - Machining | Bright |
| Drill Length Class | Jobber Length |
| Shank Type - Machining | Straight |
| Measurement System | Fractional Inch |
| Material - Machining | Carbide |
| Series | 769 |
| Coolant Fed | Non-Coolant Through |
| Standards | Not Rated |
| Package Quantity | 1 |
