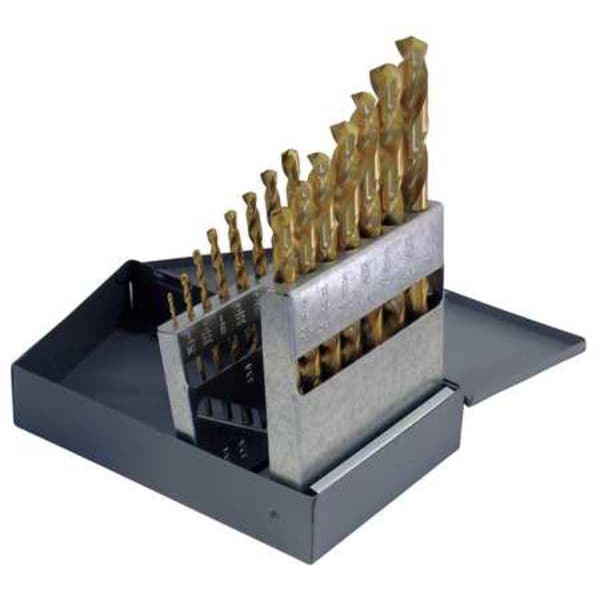

15PC 135 Degree Heavy-Duty Jobber Length Drill Set Chicago-Latrobe 150ASP-TN TiN HSS 1/16-1/2x1/32
| Item | Jobber Drill Bit Set |
|---|---|
| Number of Pieces | 15 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 135 deg |
| Drill Bit Material | High Speed Steel |
| Includes | Metal Drill Index |
| Sizes Included | 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2" |
| Drill Bit Dimension Type | Fractional Inch |
| Shank Dia. | 1/6 in to 1/2 in |
| Drill Bit Size | 1/16 in -1/2 in by 1/32 in |
| List Number | 150ASPTN |
| Point Type | P3 Split Point |
| Drill Bit Grouping | Drill Bit Set |
| Standards | NAS 907 Type B |
| Depth x Dia. Ratio | 4 xD |
| Shank Type - Machining | Straight |
| Measurement System | Fractional Inch |
| Largest Drill Bit Size | 1/2 in |
| Aircraft Drill | Yes |
| Material Grade - Machining | Heavy Duty |
| Drill Bit Sizes Included | 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in |
| Material - Machining | High Speed Steel |
| Finish - Machining | TiN |
| Smallest Drill Bit Size | 1/16 in |
| Primary Material Application | All Materials |
| Number of Drill Bits | 15 |
| Coolant Fed | Non-Coolant Through |
| Drill Length Class | Length |
| Drill Bit Point Type | Split Point |
| Drill Bit Case Type | Metal Drill Index |
| Flute Type | Spiral |
| Package Quantity | 1 |
