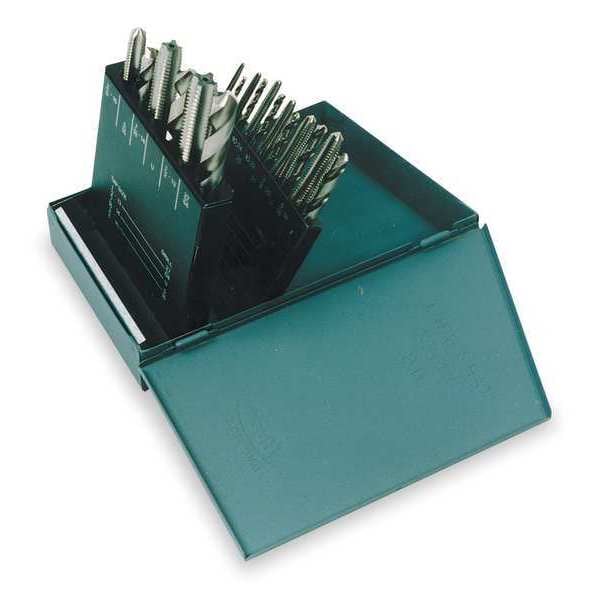

18PC Jobber Drill and Plug Hand Tap Set CL 150D/1002 Bright HSS #36, #29, #25, #21, #7, F, 5/16, U, 27/64
| Item | Drill Bit and Tap Set |
|---|---|
| Number of Pieces | 18 |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | High Speed Steel |
| Includes | Metal Index Case |
| Drill Style | 150D |
| Tap Style | 5303/5305 |
| Impact Rated | No |
| Drill Sizes | #21, #25, #29, #36, #7, 27/64 in, 5/16 in, F, U |
| Tap Sizes | 6-32, 8-32, 10-24, 10-32, 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 |
| Finish | Bright |
| Size Range | 1/4-20, 10-24, 10-32, 3/8-16, 5/16-18, 6-32, 7/16-14. 1/2-13, 8-32 |
| Thread Type | NC, NF |
| Tap Chamfer | Plug |
| Number Of Taps | 9 |
| Number Of Drills | 9 |
| Tap Type | Hand Tap |
| Thread Limit | 2B |
| Tap Drill Size | #21, #25, #29, #36, #7, 27/64 in, 5/16 in, F, U |
| Largest Drill Bit Dia. | 27/64 in |
| Thread Sizes Included | 1/4"-20, 10-24, 10-32, 3/8-16, 5/16-18, 6-32, 7/16"-14, 1/2"-13, 8-32 |
| Smallest Drill Bit Dia. | #36 |
| Tap Sizes Included | #10-24, #10-32, #6-32, #8-32, 1/2"-13, 1/4"-20, 3/8"-16, 5/16"-18, 7/16"-14 |
| Secondary Material Application ISO Code | M |
| Drill Bit Dia. Included | #21, #25, #29, #36, #7, 27/64 in, 5/16 in, F, U |
| Primary Material Application | All Materials |
| Largest Thread Size | 1/2"-13 |
| Thread Standard | UNC, UNF |
| Threads per Inch | 13, 14, 16, 18, 20, 24, 32 |
| Drill Series | 150D |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | P, K, M, H, N, S, O |
| Features | Hand Tap |
| Dimensions Standard | Fractional Inch |
| Smallest Thread Size | #6-32 |
| Secondary Material Application | Stainless Steel |
| Thread Direction | Right Hand |
| Finish - Machining | Bright |
| Package Quantity | 1 |
