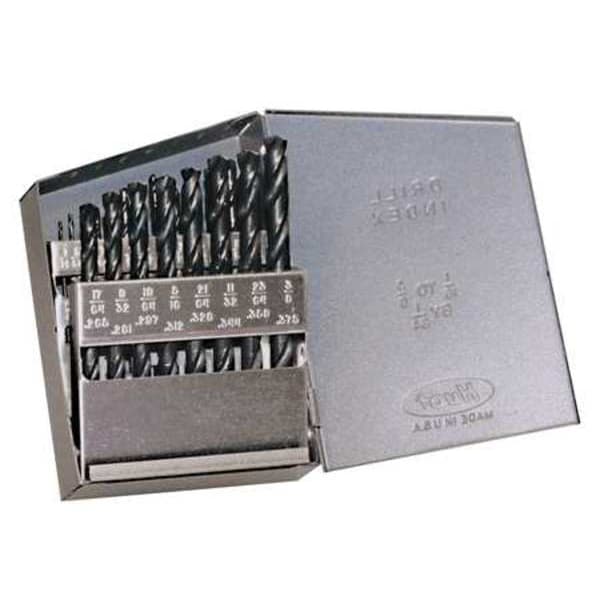

21PC 135 Degree Heavy-Duty Jobber Length Drill Set Chicago-Latrobe 150ASP Steam Oxide HSS 1/16-3/8x1/64
| Item | Jobber Drill Bit Set |
|---|---|
| Number of Pieces | 21 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 135 deg |
| Drill Bit Material | High Speed Steel |
| Includes | Metal Drill Index |
| Drill Bit Size | 1/16 in -3/8 in by 1/64 in |
| Shank Dia. | 1/16 in to 3/8 in |
| Point Type | P3 Split Point |
| Drill Bit Dimension Type | Fractional Inch |
| List Number | 150ASP |
| Sizes Included | 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8" |
| Drill Bit Grouping | Drill Bit Set |
| Standards | NAS 907 Type B |
| Depth x Dia. Ratio | 4 xD |
| Drill Bit Sizes Included | 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/64 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in |
| Largest Drill Bit Size | 3/8 in |
| Measurement System | Fractional Inch |
| Primary Material Application | All Materials |
| Finish - Machining | Black Oxide |
| Aircraft Drill | Yes |
| Drill Length Class | Length |
| Material Grade - Machining | Heavy Duty |
| Material - Machining | High Speed Steel |
| Drill Bit Point Type | Split Point |
| Shank Type - Machining | Straight |
| Smallest Drill Bit Size | 1/16 in |
| Coolant Fed | Non-Coolant Through |
| Number of Drill Bits | 21 |
| Drill Bit Case Type | Metal Drill Index |
| Flute Type | Spiral |
| Package Quantity | 1 |
