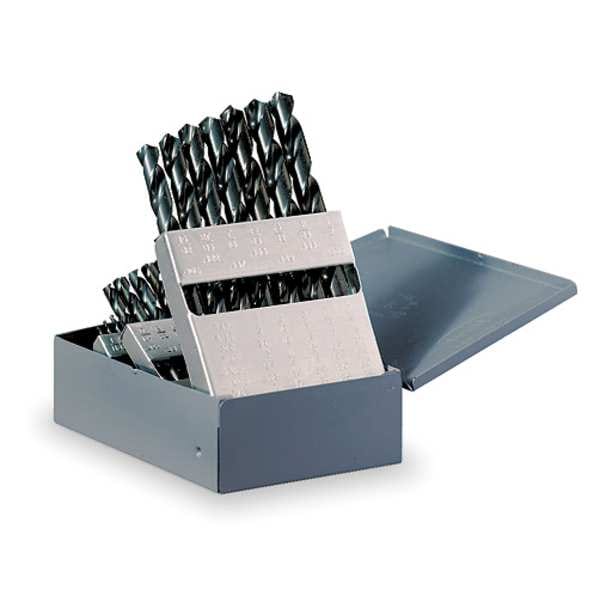

25PC 118 Degree General Purpose Jobber Lengh Drill Set Chicago-Latrobe 150 Steam Oxide HSS 1mm-13mmx.5mm
| Item | Jobber Drill Bit Set |
|---|---|
| Number of Pieces | 25 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | High Speed Steel |
| Includes | Metal Drill Index |
| List Number | 150 |
| Sizes Included | 1.00mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm, 3.50mm, 4.00mm, 4.50mm, 5.00mm, 5.50mm, 6.00mm, 6.50mm, 7.00mm, 7.50mm, 8.00mm, 8.50mm, 9.00mm, 9.50mm, 10.00mm, 10.50mm, 11.00mm, 11.50mm, 12.00mm, 12.50mm, 13.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Grouping | Drill Bit Set |
| Point Type | Conventional Point |
| Drill Bit Size | 1.00 mm-13.00 mm by 0.50 mm |
| Shank Dia. | 0.0394 in to 0.5118 in |
| Depth x Dia. Ratio | 4 xD |
| Standards | DIN 338 |
| Size Range | 1mm-13mm |
| Shank Type | Straight |
| Left/Right Hand | Right |
| Drill Style | Jobber Drill |
| Measurement System | Metric |
| Number of Drill Bits | 25 |
| Aircraft Drill | No |
| Shank Type - Machining | Straight |
| Drill Bit Point Type | Conventional Point |
| Largest Drill Bit Size | 13 mm |
| Material Grade - Machining | General Purpose |
| Drill Length Class | Length |
| Material - Machining | High Speed Steel |
| Primary Material Application | All Materials |
| Finish - Machining | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Sizes Included | 1.00 mm, 1.50 mm, 10.00 mm, 10.50 mm, 11.00 mm, 11.50 mm, 12.00 mm, 12.50 mm, 13.00 mm, 2.00 mm, 2.50 mm, 3.00 mm, 3.50 mm, 4.00 mm, 4.50 mm, 5.50 mm, 6.00 mm, 6.50 mm, 7.00 mm, 7.50 mm, 8.00 mm, 8.50 mm, 9.00 mm, 9.50 mm |
| Smallest Drill Bit Size | 1 mm |
| Flute Type | Spiral |
| Drill Bit Case Type | Metal Drill Index |
| Products By Industry | Electrical |
| Package Quantity | 1 |
