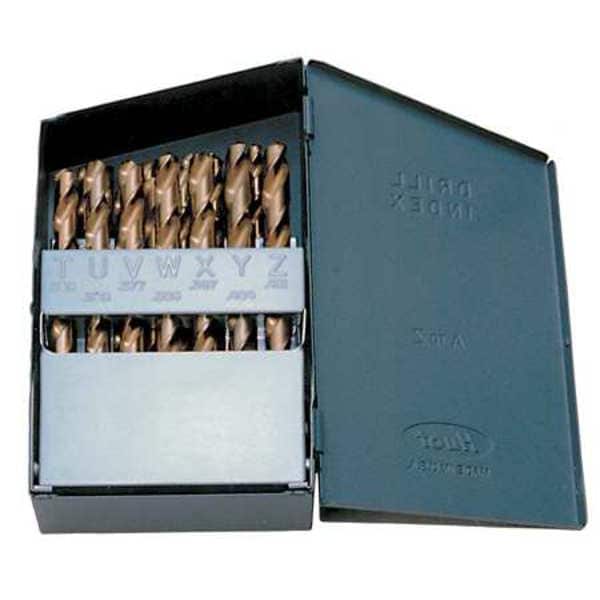

26PC A-Z HSS 118 Degree General Purpose Jobber Lengh Drill Set Chicago-Latrobe 150-TN TiN
| Item | Jobber Drill Bit Set |
|---|---|
| Number of Pieces | 26 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | High Speed Steel |
| Includes | Metal Drill Index |
| Drill Bit Size | A-Z |
| Drill Bit Dimension Type | Letter |
| List Number | 150T |
| Drill Bit Grouping | Drill Bit Set |
| Sizes Included | A-Z |
| Point Type | Conventional Point |
| Depth x Dia. Ratio | 4 xD |
| Shank Dia. | 0.2340 in to 0.4130 in |
| Standards | ASME B94.11M-1993 |
| Aircraft Drill | No |
| Drill Length Class | Length |
| Finish - Machining | TiN |
| Material Grade - Machining | General Purpose |
| Measurement System | Letter |
| Number of Drill Bits | 26 |
| Smallest Drill Bit Size | A |
| Coolant Fed | Non-Coolant Through |
| Largest Drill Bit Size | Z |
| Primary Material Application | All Materials |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Sizes Included | B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z |
| Shank Type - Machining | Straight |
| Material - Machining | High Speed Steel |
| Flute Type | Spiral |
| Drill Bit Case Type | Metal Drill Index |
| Package Quantity | 1 |
