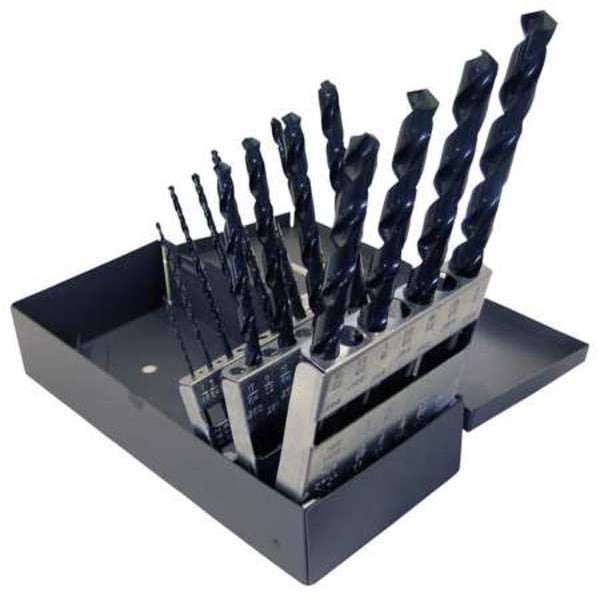

29PC 118 Degree General Purpose Taper Length Drill Set Chicago-Latrobe 120 Steam Oxide HSS 1/16-1/2x1/64
| Item | Taper Length Drill Bit Set |
|---|---|
| Number of Pieces | 29 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | High Speed Steel |
| Drill Bit Dimension Type | Fractional Inch |
| Point Type | General Purpose |
| Depth x Dia. Ratio | 4 xD |
| Sizes Included | 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2" |
| List Number | 120 |
| Drill Bit Size | 1/16 in to 1/2 in x 1/64 in |
| Flute Type | Spiral |
| Standards | Not Rated |
| Primary Material Application | Cast Iron, Steel |
| Measurement System | Fractional Inch |
| Material - Machining | High Speed Steel |
| Shank Type - Machining | Straight |
| Finish - Machining | Black Oxide |
| Primary Material Application ISO Code | P, K |
| Helix Angle | 28 Degrees |
| Coolant Fed | Non-Coolant Through |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in - +0.0000 in /-0.0010 in |
| Drill Length Class | Length |
| Drill Bit Point Type | Radial Point |
| Material Grade - Machining | General Purpose |
| Series | 120 |
| Maximum Drilling Depth | Variable |
| Drill Point Length | 0.0000 in |
| Thread Direction | Right Hand |
| Package Quantity | 1 |
