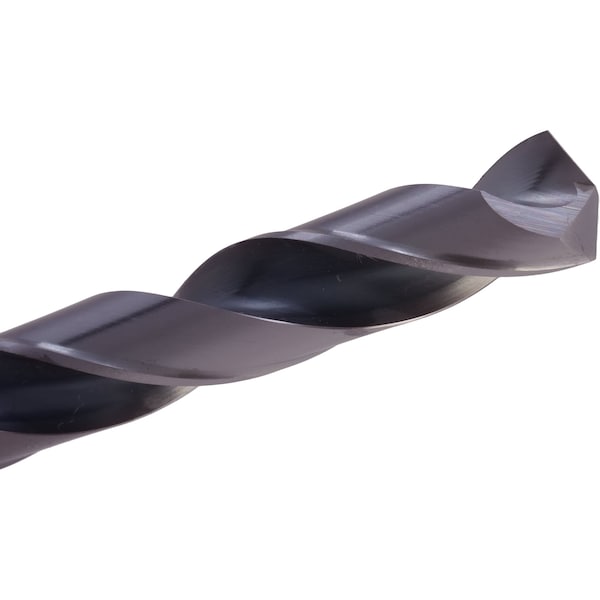

#41 Cobalt 8%-M42 135 Degree Heavy-Duty Jobber Length Drill Chicago-Latrobe 550-TA TiAlN RHS/RHC
| Item | Jobber Length Drill Bit |
|---|---|
| Overall Length | 2-3/8 in |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | #41 |
| Number of Flutes | 2 |
| Shank Dia. | 3/32 in |
| Material - Machining | Cobalt |
| Cutting Direction | Right Hand |
| Finish - Machining | TiAlN |
| Shank Type - Machining | Straight |
| Decimal Equivalent | 0.096 |
| Standards | NAS 907 Type J |
| List Number | 550-TA |
| Flute Length | 1-3/8 in |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Dimension Type | Wire |
| Application | Stainless Steel, Tool Steel, Alloy Steel, Titanium, Cast Iron |
| Flute Type | Spiral |
| Depth:Dia. Ratio | 4 xD |
| Coolant Fed | Non-Coolant Through |
| Diameter | 0.096 |
| Drill Style | Jobber Drill |
| Shank Size | 0.096 |
| Shank Length | 1 in |
| Measurement System | Wire |
| Helix Angle | 21 Degrees to 34 Degrees |
| Primary Material Application | Hi-Temp Alloy, Stainless Steel, Steel |
| Spiral Direction | Right Hand |
| Aircraft Drill | Yes |
| Primary Material Application ISO Code | P, M, S |
| Drill Length Class | Jobber Length |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Series | 55TA |
| Material Grade - Machining | M42 |
| Maximum Drilling Depth | 1-1/32 in |
| Drill Bit Point Type | Split Point |
| Drill Point Length | 0.0199 in |
| Sheeter Drill | No |
| Number of Coolant Holes | 0 |
| Web Thinning | Thinned |
| Package Quantity | 1 |
