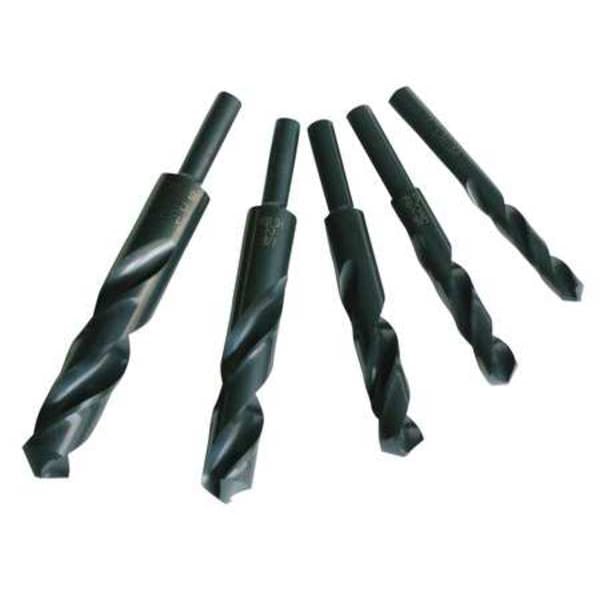

5PC 1/4 Reduced Shank Silver & Deming Drill Set Chicago-Latrobe 239 Steam Oxide HSS 1/4-1/2
| Item | Reduced Shank Drill Bit Set |
|---|---|
| Number of Pieces | 5 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | High Speed Steel |
| Includes | Metal Index |
| Sizes Included | 1/4", 5/16", 3/8", 7/16", 1/2" |
| Drill Bit Size | 1/4" to 1/2" by 1/16" |
| Shank Dia. | 1/2 in |
| Drill Bit Dimension Type | Fractional Inch |
| List Number | 239 |
| Drill Bit Grouping | Drill Bit Set |
| Flute Type | Spiral |
| Depth x Dia. Ratio | 4 xD |
| Number of Drill Bits | 5 |
| Measurement System | Fractional Inch |
| Drill Bit Point Type | Conventional Point |
| Finish - Machining | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Material - Machining | High Speed Steel |
| Largest Drill Bit Size | 1/2 in |
| Shank Type - Machining | Straight |
| Primary Material Application | All Materials |
| Smallest Drill Bit Size | 1/4 in |
| Drill Bit Sizes Included | 1/2 in, 1/4 in, 3/8 in, 5/16 in, 7/16 in |
| Material Grade - Machining | General Purpose |
| Standards | Not Rated |
| Drill Bit Case Type | Metal Index |
| Point Type | General Purpose |
| Package Quantity | 1 |
