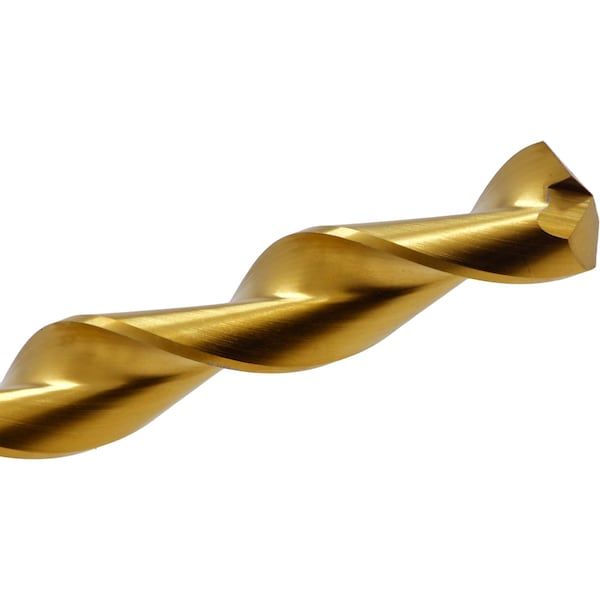

9/32 HSS 135 Degree Deep Hole Parabolic Jobber Length Drill Chicago-Latrobe 150DH-TN TiN RHS/RHC
| Item | Jobber Length Drill Bit |
|---|---|
| Overall Length | 4-1/4 in |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 9/32 in |
| Number of Flutes | 2 |
| Shank Dia. | 17/64 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Finish - Machining | TiN |
| Shank Type - Machining | Straight |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Dimension Type | Fractional Inch |
| List Number | 150DH-TN |
| Flute Length | 2-15/16 in |
| Standards | ANSI |
| Application | Low Carbon Steel, Soft Alloy Steel, Aluminum, Non-Ferrous Materials, Deep-hole Drilling |
| Decimal Equivalent | 0.2813 |
| Flute Type | Spiral |
| Diameter | 0.234375 |
| Shank Size | 0.2344 |
| Shank Length | 1-5/16 in |
| Drill Style | Jobber Drill |
| Measurement System | Fractional Inch |
| Coolant Fed | Non-Coolant Through |
| Depth:Dia. Ratio | 8 xD |
| Helix Angle | 35 Degrees to 45 Degrees |
| Primary Material Application | Steel |
| Spiral Direction | Right Hand |
| Drill Point Length | 0.0582 in |
| Primary Material Application ISO Code | P |
| Maximum Drilling Depth | 2-3/16 in |
| Drill Bit Point Type | Split Point |
| Drill Length Class | Jobber Length |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Series | 150DH-TN |
| Material Grade - Machining | General Purpose |
| Web Thinning | Thinned |
| Number of Coolant Holes | 0 |
| Sheeter Drill | No |
| Aircraft Drill | No |
| Package Quantity | 1 |
