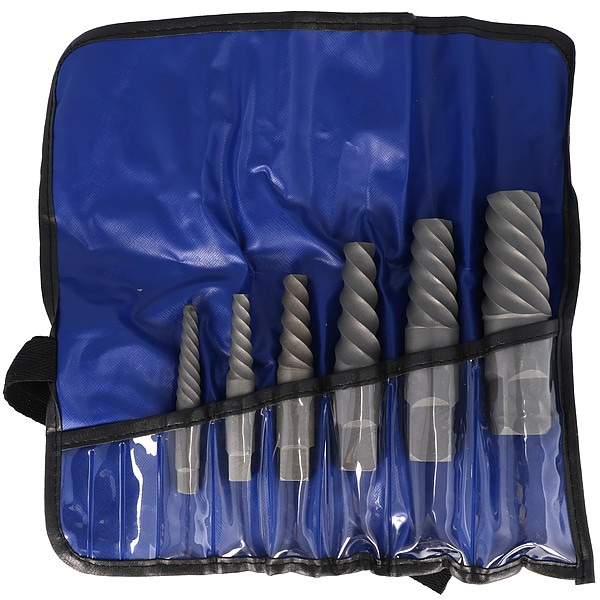

Screw Extractor 6pc Set 800 Chicago-Latrobe #5, #5-1/4, #6, #6-3/8, #7, #7-1/2, #8, & #9
| Item | Screw Extractor Set |
|---|---|
| Material | Steel |
| Number of Pieces | 6 |
| Includes | Extractors #5, #5-1/4, #6 -3/8, #7-1/2, #8, #9 Wood Block |
| For Removing Studs, Bolts, Screws | Screws #5, #5-1/4, #6-3/8, #7-1/2, #8, #9 |
| Drill Size (In.) | 17/64", 23/64", 31/64", 39/64", 13/16", 1-1/16" |
| For Removing Pipe | Yes |
| Features | Removes Broken Cap Screws, Studs, Bolts, Pipe Fittings and Other Threaded Parts Without Damaging The Threads In The Hole |
| Type | Screw Extractor |
| Impact Rated | No |
| Drill Size | 1-1/16 in, 13/16 in, 17/64 in, 23/64 in, 31/64 in, 39/64 in |
| Extractor Type | Spiral Flute Extractor |
| Container Type | Block |
| Large End Dia. | 1-1/32 in, 1-9/32 in, 11/16 in, 17/32 in, 7/16 in, 7/8 in |
| Material - Machining | Carbon Steel |
| Overall Length | 3 3/8 in, 3 3/4 in, 4 1/8 in, 4 3/8 in, 4 5/8 in |
| Drive Type | Square |
| Small End Dia. | 1 in, 1/4 in, 11/32 in, 15/32 in, 19/32 in, 3/4 in |
| For Bolt Size | 9/16 in to 2 1/8 in |
| For Bolt Thread Direction | Right Hand |
| Includes Drill Bits | Drill Bits Not Included |
| Compatible Bolt Size | 9/16 in to 2 1/8 in, M14 to M54 |
| Required Drill Bit Sizes | 17/64 in, 23/64 in, 31/64 in, 39/64 in, 13/16 in, 1 1/16 in |
| Compatible Pipe Size | 1/8 in, 1/4 in, 3/8 in, 1/2 in, 3/4 in, 1 in |
| Compatible Thread Direction | Right Hand |
| Includes Extractor Sizes | #5, #5 1/4, #6 3/8, #7 1/2, #8, #9 |
| Drill Bit List Number | Not Applicable |
| Includes Drill Bit Sizes | Not Applicable |
| Compatible Screw Head Size | 9/16 in to 2 1/8 in, M14 to M54 |
| Package Quantity | 1 |
