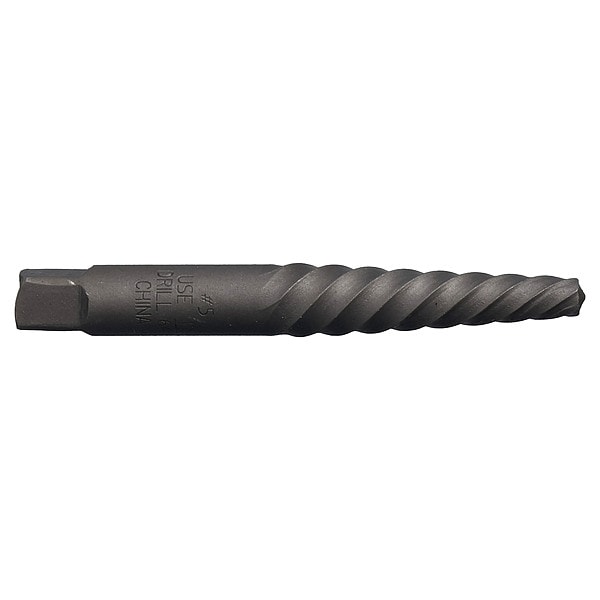

Screw Extractor 800 Chicago-Latrobe #1 (Drill Size 5/64")
| Item | Screw Extractor |
|---|---|
| Type | Spiral Flute |
| For Removing Studs, Bolts, Screws | #8 to 1/4 |
| Size | #1 |
| Material | Carbon Steel |
| Impact Rated | No |
| Overall Length | 2 in |
| Taper Length (In.) | 3/4 |
| Overall Length (In.) | 2 |
| Large End Dia. (In.) | 5/32 |
| Application | Removing Broken Screws, Bolts and Other Threaded Parts |
| Drill Size (In.) | 5/64 |
| Small End Dia. (In.) | 1/16 |
| Drill Size | 5/64 in |
| Drive Type | Square |
| For Bolt Size | #8 to 1/4 |
| Extractor Type | Spiral Flute Extractor |
| Material - Machining | Carbon Steel |
| For Bolt Thread Direction | Right Hand |
| Drive Size | 9/64 in |
| Required Drill Bit Size | 5/64 in |
| Extractor Size | #1 |
| Compatible Thread Direction | Right Hand |
| Compatible Screw Head Size | #8 to 1/4 in, M2.5 to M6 |
| Compatible Bolt Size | #8 to 1/4 in, M2.5 to M6 |
| Compatible Pipe Size | Not Applicable |
| Package Quantity | 1 |
