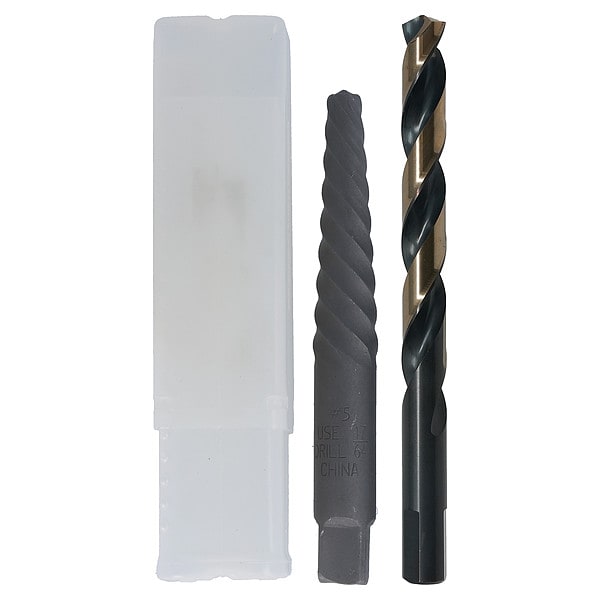

Screw Extractor 800 Chicago-Latrobe #11 (Drill Size 1-9/16")
| Item | Screw Extractor |
|---|---|
| Type | Conventional Spiral |
| For Removing Studs, Bolts, Screws | Yes |
| Size | #11 |
| Material | Carbon Steel |
| Impact Rated | No |
| Overall Length | 5-5/8 in |
| Large End Dia. (In.) | 1-7/8 |
| Drill Size (In.) | 1-9/16 |
| Features | Removes Broken Cap Screws, Studs, Bolts, Pipe Fittings and Other Threaded Parts Without Damaging The Threads In The Hole |
| Application | Alloy Steel, Tool Steel, Low Carbon Steel, Medium Carbon Steel, Cast Iron |
| Overall Length (In.) | 5-5/8 |
| Small End Dia. (In.) | 1-1/2 |
| Drill Size | 1-9/16 in |
| Drive Type | Square |
| Material - Machining | Carbon Steel |
| For Bolt Size | 2 1/2 in to 3 in |
| Extractor Type | Spiral Flute Extractor |
| For Bolt Thread Direction | Right Hand |
| Drive Size | 1-7/8 in |
| Extractor Size | #11 |
| Compatible Pipe Size | 1-1/2 in |
| Compatible Thread Direction | Right Hand |
| Compatible Bolt Size | 2 1/2 in to 3 in, M63 to M76 |
| Compatible Screw Head Size | 2 1/2 in to 3 in, M63 to M76 |
| Required Drill Bit Size | 1-9/16 in |
| Package Quantity | 1 |
