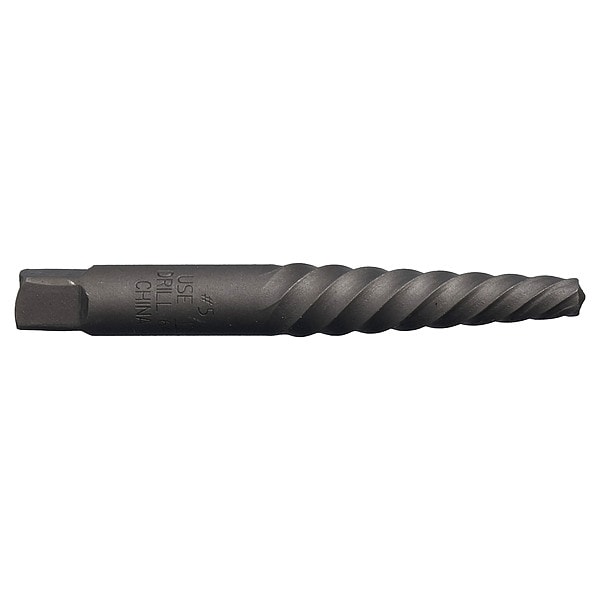

Screw Extractor 800 Chicago-Latrobe #5 (Drill Size 17/64")
| Item | Screw Extractor |
|---|---|
| Type | Spiral Flute |
| For Removing Studs, Bolts, Screws | 9/16 to 3/4 |
| For Removing Pipe | 1/8 |
| Size | #5 |
| Material | Carbon Steel |
| Impact Rated | No |
| Overall Length | 3-3/8 in |
| Drill Size (In.) | 17/64 |
| Small End Dia. (In.) | 1/4 |
| Large End Dia. (In.) | 7/16 |
| Taper Length (In.) | 1-1/2 |
| Application | Removing Broken Screws, Bolts and Other Threaded Parts |
| Overall Length (In.) | 3-3/8 |
| Material - Machining | Carbon Steel |
| For Bolt Size | 9/16 in to 3/4 in |
| Drive Type | Square |
| Drill Size | 17/64 in |
| Extractor Type | Spiral Flute Extractor |
| For Bolt Thread Direction | Right Hand |
| Drive Size | 7/16 in |
| Compatible Screw Head Size | 9/16 in to 3/4 in, M14 to M20 |
| Required Drill Bit Size | 17/64 in |
| Compatible Pipe Size | 1/8 in |
| Compatible Bolt Size | 9/16 in to 3/4 in, M14 to M20 |
| Extractor Size | #5 |
| Compatible Thread Direction | Right Hand |
| Package Quantity | 1 |
