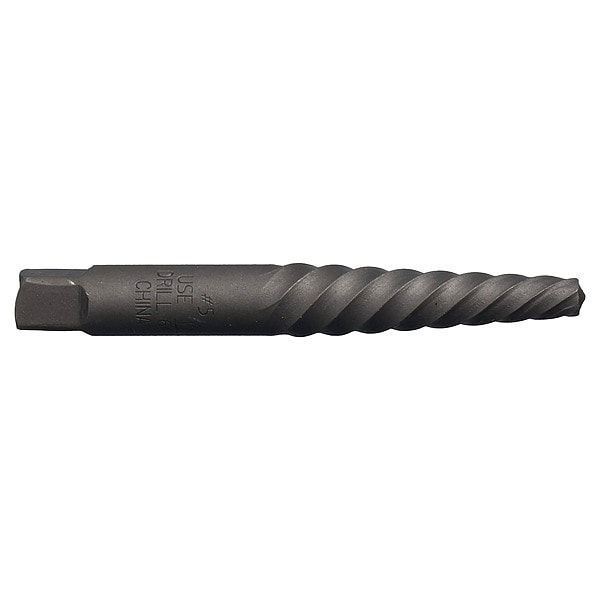

Screw Extractor 800 Chicago-Latrobe #9 (Drill Size 1-1/16")
| Item | Screw Extractor |
|---|---|
| Type | Spiral Flute |
| For Removing Studs, Bolts, Screws | 1-3/4 to 2 |
| For Removing Pipe | 1 |
| Size | #9 |
| Material | Carbon Steel |
| Impact Rated | No |
| Overall Length | 4-5/8 in |
| Taper Length (In.) | 2-1/4 |
| Application | Removing Broken Screws, Bolts and Other Threaded Parts |
| Large End Dia. (In.) | 1-9/32 |
| Overall Length (In.) | 4-5/8 |
| Drill Size (In.) | 1-1/16 |
| Small End Dia. (In.) | 1 |
| For Bolt Size | 1 3/4 in to 2 1/8 in |
| Drive Type | Square |
| Drill Size | 1-1/16 in |
| Extractor Type | Spiral Flute Extractor |
| Material - Machining | Carbon Steel |
| For Bolt Thread Direction | Right Hand |
| Drive Size | 1-17/64 in |
| Compatible Screw Head Size | 1 3/4 in to 2 1/8 in, M44 to M54 |
| Compatible Pipe Size | 1 in |
| Extractor Size | #9 |
| Compatible Thread Direction | Right Hand |
| Compatible Bolt Size | 1 3/4 in to 2 1/8 in, M44 to M54 |
| Required Drill Bit Size | 1-1/16 in |
| Package Quantity | 1 |
