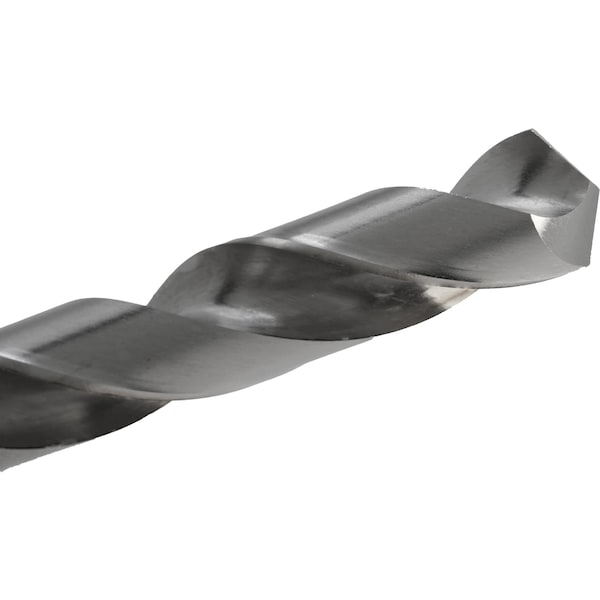

Screw Machine Drill Bit, 13/16 in Size, 118 Degrees Point Angle, High Speed Steel, Straight Shank
| Item | Screw Machine Drill Bit |
|---|---|
| Drill Bit Grouping | Drill Bit |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Size | 13/16 in |
| Decimal Equivalent | 0.8125 |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish | Black Oxide |
| Shank Type | Straight |
| Flute Type | Spiral |
| Shank Dia. | 13/16 in |
| Overall Length | 5-1/4 in |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Flute Length | 3-3/8 in |
| Maximum Drilling Depth | 3-3/8 in |
| Number of Pieces | 0 |
| List Number | 157 |
| Sizes Included | 13/16" |
| Application | For Drilling Alloy Steel, Carbon Steel, Cast Iron |
| Grade | General Purpose |
| Drilling Length | 3-3/8 in |
| Shank Shape | Straight |
| Shank Size | 13/16" |
| Bit Dia. | 13/16" |
| Point Type | Radial |
| Coolant Through | No |
| Standards | ANSI |
| Depth x Dia. Ratio | 4 xD |
| Coolant Fed | Non-Coolant Through |
| Depth:Dia. Ratio | 4 xD |
| Series | 157 |
| Helix Angle | 28 deg |
| Shank Length | 1-7/8 in |
| Drill Length Class | Screw Machine Length |
| Measurement System | Fractional Inch |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Primary Material Application | Cast Iron, Steel |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Drill Bit Point Type | Conventional Point |
| Finish - Machining | Black Oxide |
| Material - Machining | High Speed Steel |
| Drill Point Length | 0.2441 in |
| Material Grade - Machining | General Purpose |
| Primary Material Application ISO Code | P, K |
| Package Quantity | 1 |
