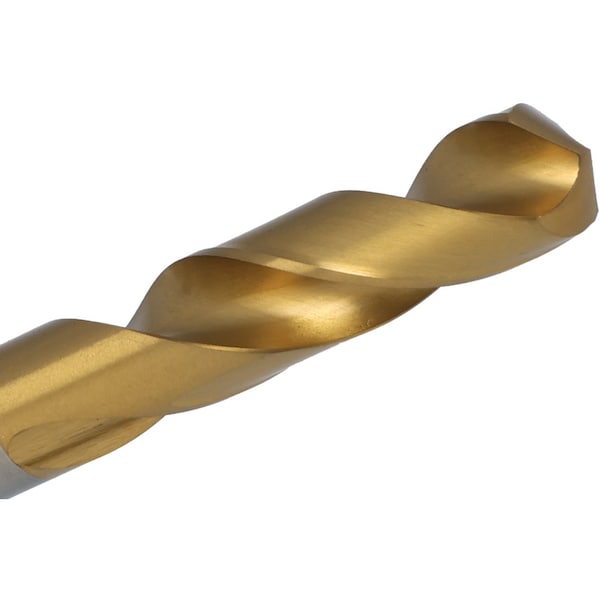

Screw Machine Drill Bit, 25/64 in Size, 118 Degrees Point Angle, High Speed Steel, TiN Finish
| Item | Screw Machine Drill Bit |
|---|---|
| Drill Bit Grouping | Drill Bit |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Size | 25/64 in |
| Decimal Equivalent | 0.3906 |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish | TiN |
| Shank Type | Straight |
| Material | HSS |
| Flute Type | Spiral |
| Point Angle | 118 |
| Shank Dia. | 25/64 in |
| Overall Length | 3-1/4 in |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Flute Length | 1-7/8 in |
| Maximum Drilling Depth | 1-7/8 in |
| List Number | 2157 |
| Sizes Included | 25/64" |
| Point Type | General Purpose |
| Depth:Dia. Ratio | 4 xD |
| Standards | Not Rated |
| Shank Size | 0.3906 |
| Depth x Dia. Ratio | 4 xD |
| Drill Style | Screw Machine Drill |
| Diameter | 0.3906 |
| Measurement System | Fractional Inch |
| Left/Right Hand | Right |
| Shank Length | 1-3/8 in |
| Series | 157-TN |
| Shank Type - Machining | Straight |
| Primary Material Application | Brass, Bronze, Copper, Cast Iron, Aluminum, Steel |
| Drill Point Length | 0.1174 in |
| Spiral Direction | Right Hand |
| Drill Length Class | Screw Machine Length |
| Primary Material Application ISO Code | P, K, N |
| Material - Machining | High Speed Steel |
| Drill Bit Point Type | Conventional Point |
| Helix Angle | 28 deg |
| Finish - Machining | TiN |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Package Quantity | 1 |
