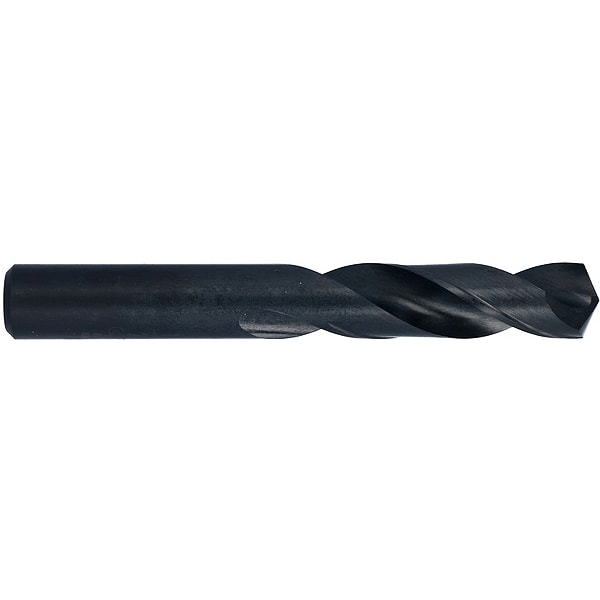

Screw Machine Drill Bit, #36 Size, 135 Degrees Point Angle, High Speed Steel, Black Oxide Finish
| Item | Screw Machine Drill Bit |
|---|---|
| Drill Bit Grouping | Drill Bit |
| Drill Bit Dimension Type | Wire |
| Drill Bit Size | #36 |
| Decimal Equivalent | 0.1065 |
| Drill Bit Point Angle | 135 deg |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish | Black Oxide |
| Shank Type | Straight |
| Material | HSS |
| Flute Type | Spiral |
| Point Angle | 135 |
| Shank Dia. | 7/64 in |
| Overall Length | 1-13/16 in |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Flute Length | 13/16 in |
| Maximum Drilling Depth | 13/16 in |
| Application | For Alloy, Carbon And Tool Steels And Cast Iron |
| Point Type | Split point |
| Grade | Heavy Duty |
| Depth:Dia. Ratio | 4 xD |
| List Number | 159 |
| Depth x Dia. Ratio | 4 xD |
| Standards | Not Rated |
| Shank Size | 0.1065 |
| Diameter | 0.1065 |
| Measurement System | Wire |
| Left/Right Hand | Right |
| Shank Length | 1 in |
| Drill Style | Screw Machine Drill |
| Series | 159 |
| Drill Point Length | 0.0221 in |
| Primary Material Application | Cast Iron, Steel |
| Helix Angle | 28 deg |
| Primary Material Application ISO Code | P, K |
| Finish - Machining | Black Oxide |
| Drill Length Class | Screw Machine Length |
| Shank Type - Machining | Straight |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Bit Point Type | Split Point |
| Material - Machining | High Speed Steel |
| Spiral Direction | Right Hand |
| Material Grade - Machining | Heavy Duty |
| Package Quantity | 1 |
