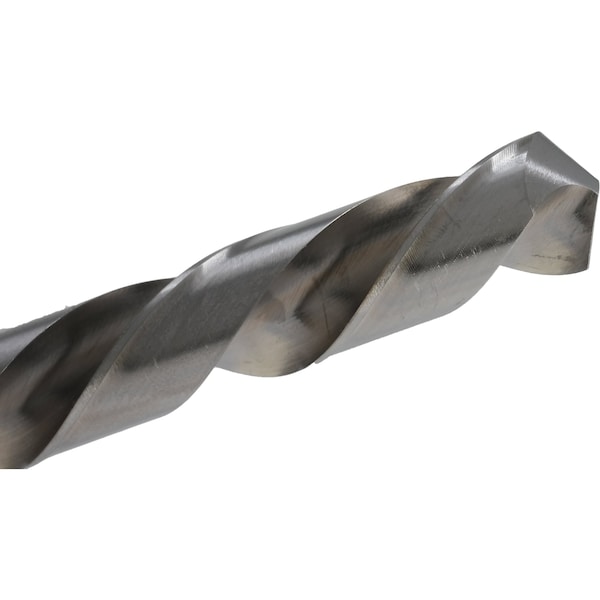

Screw Machine Drill Bit, 7/64 in Size, 118 Degrees Point Angle, High Speed Steel, Bright Finish
| Item | Screw Machine Drill Bit |
|---|---|
| Drill Bit Grouping | Drill Bit |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Size | 7/64 in |
| Decimal Equivalent | 0.1094 |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish | Bright |
| Flute Type | Spiral |
| Shank Dia. | 7/64 in |
| Overall Length | 1-13/16 in |
| Cutting Direction | Left Hand |
| Number of Flutes | 2 |
| Flute Length | 13/16 in |
| Maximum Drilling Depth | 13/16 in |
| List Number | 157L |
| Point Type | General Purpose |
| Depth x Dia. Ratio | 4 xD |
| Sizes Included | 7/64" |
| Depth:Dia. Ratio | 4 xD |
| Standards | Not Rated |
| Series | 157L |
| Finish - Machining | Bright |
| Shank Type - Machining | Straight |
| Material - Machining | High Speed Steel |
| Primary Material Application ISO Code | P, K, N, O |
| Drill Length Class | Screw Machine Length |
| Spiral Direction | Left Hand |
| Drill Point Length | 0.0329 in |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Shank Length | 1 in |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Steel, Composite, Slate, Wood |
| Drill Bit Point Type | Conventional Point |
| Helix Angle | 28 deg |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
