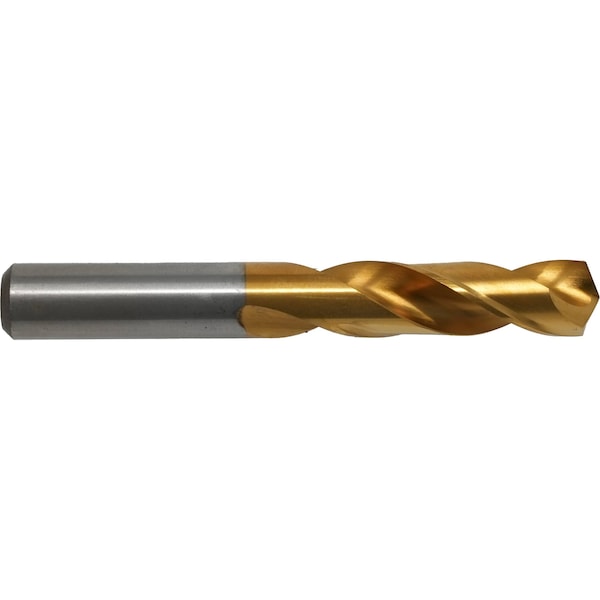

Screw Machine Drill Bit, T Size, 135 Degrees Point Angle, High Speed Steel, TiN Finish
| Drill Bit Grouping | Drill Bit |
|---|---|
| Item | Screw Machine Drill Bit |
| Drill Bit Dimension Type | Letter |
| Drill Bit Size | T |
| Decimal Equivalent | 0.358 |
| Drill Bit Point Angle | 135 deg |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish | TiN |
| Shank Type | Straight |
| Flute Type | Spiral |
| Sizes Included | T |
| Coolant Through | No |
| Overall Length | 3-1/16 in |
| Number of Pieces | 0 |
| Drilling Length | 1-3/4 in |
| List Number | 159-TN |
| Grade | Heavy Duty |
| Shank Shape | Straight |
| Number of Flutes | 2 |
| Shank Size | 0.3580" |
| Standards | ANSI |
| Cutting Direction | Right Hand |
| Bit Dia. | T |
| Flute Length | 1-3/4 in |
| Shank Dia. | 23/64 in |
| Point Type | Split |
| Application | For Drilling Alloy Steel, Carbon Steel, Cast Iron, Tool Steel |
| Depth x Dia. Ratio | 4 xD |
| Coolant Fed | Non-Coolant Through |
| Depth:Dia. Ratio | 4 xD |
| Series | 159-TN |
| Drill Bit Point Type | Split Point |
| Finish - Machining | TiN |
| Helix Angle | 28 deg |
| Primary Material Application | Cast Iron, Steel, Tool and Die Steel |
| Material Grade - Machining | Heavy Duty |
| Drill Length Class | Screw Machine Length |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 1-3/4 in |
| Primary Material Application ISO Code | P, K |
| Spiral Direction | Right Hand |
| Measurement System | Letter |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Shank Type - Machining | Straight |
| Drill Point Length | 0.0000 |
| Shank Length | 1-5/16 in |
| Package Quantity | 1 |
