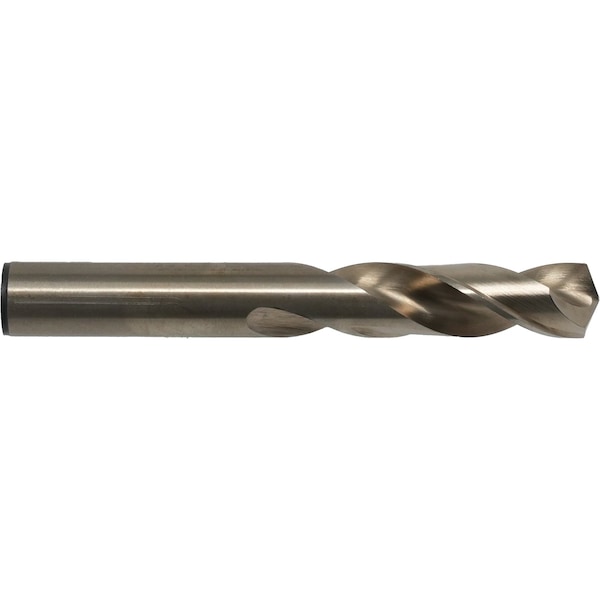

Screw Machine Length Drill, 7.00 mm Size, 135 Degrees Point Angle, Spiral Flute
| Item | Screw Machine Length Drill |
|---|---|
| Drill Bit Size | 7 mm |
| Drill Bit Point Angle | 135 deg |
| Decimal Equivalent | 0.2756 in |
| Flute Type | Spiral |
| Shank Dia. | 9/32 in |
| Overall Length | 76.71 mm |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Flute Length | 35.26 mm |
| Maximum Drilling Depth | 35.2 mm |
| Measurement System | Decimal Inch |
| Primary Material Application | Cast Iron, Alloy Steel, Carbon Steel, Steel |
| Material - Machining | Cobalt (8%); High Speed Steel |
| Finish - Machining | Straw |
| Shank Type - Machining | Straight |
| List Number | 559 |
| Standards | ASME B94.11M |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Spiral Direction | Right Hand |
| Material Grade - Machining | M42 |
| Shank Length | 41.45 mm |
| Drill Bit Point Type | Split Point |
| Drill Length Class | Screw Machine Length |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
