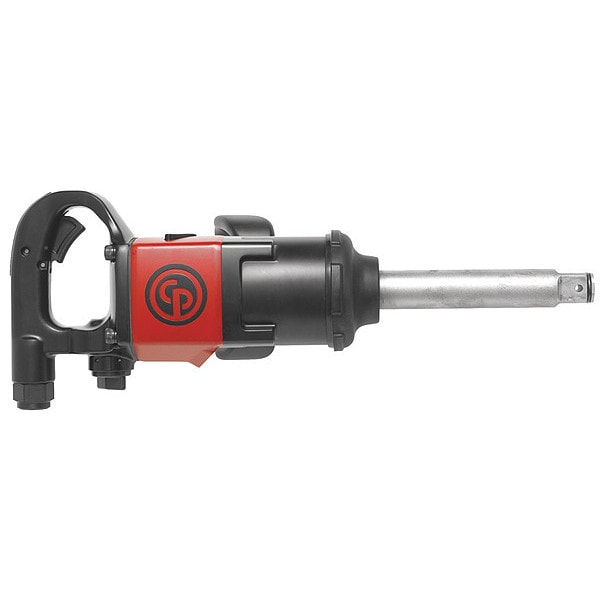

1" D-Handle Air Impact Wrench 1770 ft.-lb.
| Item | Impact Wrench |
|---|---|
| Square Drive Size | 1 in |
| Free Speed | 6,200 rpm |
| Air Inlet | 1/2 in NPT |
| Handle Type | D-Handle |
| Drive Size - Air Tools | 1" Square |
| Max. Bolt Capacity | 1-1/4 in |
| Body Style - Air Tools | D-Handle |
| CFM @ Full Load | 40.5 |
| Min. Hose Size | 3/4 in |
| Retainer Type - Air Impacts | Ring |
| Overall Length | 19-5/8 in |
| Includes | Hex Key, Rubber Bumper |
| Required Pressure | 90 psi |
| Features | Four Positions For D-Handle Placement To Provide Ultimate Operator Comfort, Rubber Bumper Protecting Both Applications & Tool (Included), Shock Absorbing |
| Torque Range | 413 to 1,253 ft-lb |
| Anvil | Extended |
| Air Inlet Size - Air Tools | 3/8 in NPT |
| Average CFM @ 15 Second Run Time | 10 |
| Tool Weight | 20.9 lb |
| Style | D-Handle |
| Handle Material | Aluminum |
| Item - Air Impact Wrenches | Air Impact Wrench |
| Retainer Type | Friction Ring, Through Hole |
| Duty | General |
| Housing Material | Aluminum |
| Anvil Type - Air Impacts | 6" Extended |
| Max. Torque | 1,770 ft-lb |
| Duty Cycle - Air Tools | General Duty |
| Anvil Length - Air Impacts | 7-1/4 in |
| Drive Size | 1 in (Square) |
| Impacts per Minute | 500 |
| Drive Type | Extended |
| Impact Sound Level | 113 dB |
| Number of Speed Settings | 3 |
| Breakaway Torque | 1,770 ft-lb |
| Vibration Level | 15.1 m/sq sec |
| Fastening Torque | 1,253 ft-lb |
| Tool Style | Compact |
| Exhaust Location | Bottom |
| Extended Anvil Length | 6 in |
| Power Source | Air Powered |
| Standards | EN ISO 11148-6:2013, ISO-28927-2 |
| Air Pressure | 90 psi |
| Max. Air Pressure | 90 psi |
| Clutch Style | Dog |
| Impact Rated | Yes |
| Power to Weight Ratio | 84.7 ft-lb/lb |
| Air Consumption | 41 cfm |
| Duty Rating | General Duty |
| Min. Air Pressure | 90 psi |
| Built-In Light | No |
| Package Quantity | 1 |
