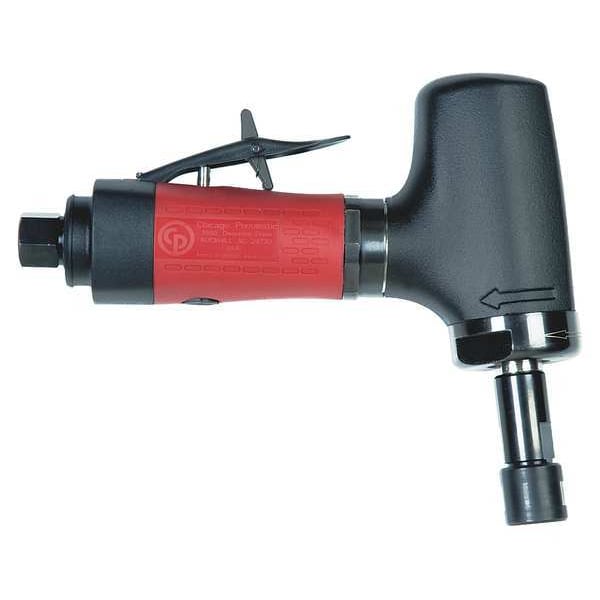

Angle Die Grinder, 1/4 in NPT Female Air Inlet, 1/4 in Collet, Heavy Duty, 24,000 RPM, 0.54 hp
| Item | Die Grinder |
|---|---|
| Overall Length | 6-3/4 in |
| Air Inlet | 1/4 in NPT Female |
| Horsepower | 0.5 |
| Free Speed | 24,000 rpm |
| Max. Speed | 24,000 rpm |
| Grinder Type | Right Angle |
| Includes | Wrenches |
| Collet | 1/4 in |
| Bearing Type | Ball |
| Average CFM @ 15 Second Run Time | 5.8 |
| Throttle | Safety Lever |
| CFM @ Full Load | 23.3 |
| Min. Hose Size | 3/8 in |
| Handle Material | Composite |
| Right Angle Length | 4-7/16 in |
| Duty | Heavy Duty |
| Variable Speed | Yes |
| Characteristics | Compact, Ergonomic, Gearless, Lightweight |
| Grinder Orientation | 7 Degree Angle |
| Tool Weight | 1.8 lb |
| Standards | ISO-28927-12 |
| Features | Easy maintenance, High precision, Lightweight and Ergonomic |
| Application | Ideal for Smoothing Rough Surfaces on the face of a Workpiece, Use in Metal Fabrication Applications With Either Carbide Burs or Mounted Grinding Stones |
| Series | CP3030-R Series |
| Accessory Free Tool Change | No |
| Switch Location | Top |
| Air Inlet Connection Size | 1/4 in |
| Tool Style | Right Angle |
| Air Pressure | 90 psi |
| Air Inlet Type | NPT |
| Power Source | Air Powered |
| Vibration Level | 2.5 m/sq sec |
| Exhaust Location | Rear |
| Kit Contents | Bare Tool |
| Collet Size | 1/4 in |
| Grip Style | Barrel Grip |
| Safety Features | Safety Lever |
| Air Consumption | 23 cfm |
| Switch Type | Safety Lever |
| Minimum Speed | 24,000 rpm |
| Safety Stop Mechanisms | Not Applicable |
| Air Inlet Gender | Female |
| Package Quantity | 1 |
