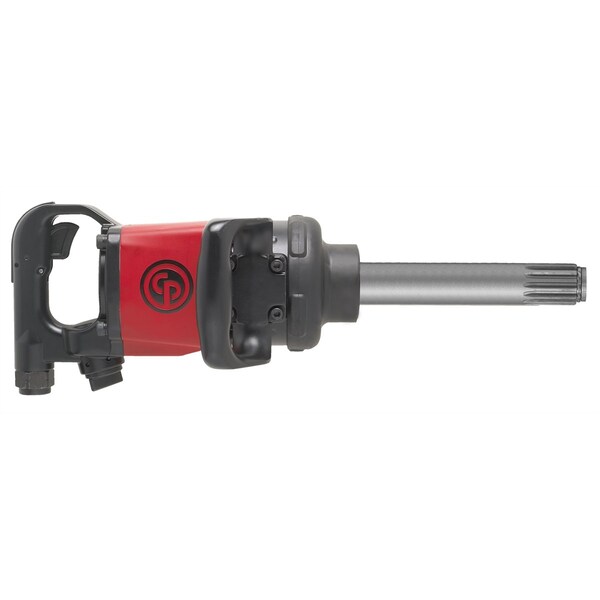

Heavy Duty Impact Wrench W/ 6" Extension/#5 Spline, 1" Drive
| Item | Heavy Duty Impact Wrench W/ 6" Extension |
|---|---|
| Square Drive Size | #5 spline" |
| Air Inlet | 1/2 in |
| Torque Range | 500 to 2,000 N-m |
| Average CFM @ 15 Second Run Time | 10 cfm |
| Overall Length | 20.4 in |
| Blows per Minute | 500 |
| Features | High efficiency motor, yet economical with durable reinforced clutch mechanism; Durable impact wrench with great power for the toughest jobs on heavy vehicles; #5 spline straight impact wrench with 6" extended anvil; 1920 ft.lbs - 2600 Nm of maximum torque in reverse; Pinless closed reinforced rocking dog impact mechanism; Socket retainer ring combined with hole retainer; Ergonomic side handle; Full teasing trigger; Regulator with integrated forward/reverse with 3-position power settings in both directions |
| Vibration | 7.8 m/sec |
| Sound Power | 111 dBa |
| Clutch type | Pin less closed rocking dog |
| Noise level | 100 dBa |
| Free speed | 5,200 rpm |
| Handle type | D-Handle Inside Trigger |
| Socket retainer | Spline #5 |
| Bolt size | M32 |
| Actual air consumption | 40.7 cfm |
| Min. hose size | 1/2" |
| Vibration K | 1.8 m/s (ISO-28927-2) |
| Maximum Torque (reverse) | 2,600 N-m |
| Package Quantity | 1 |
