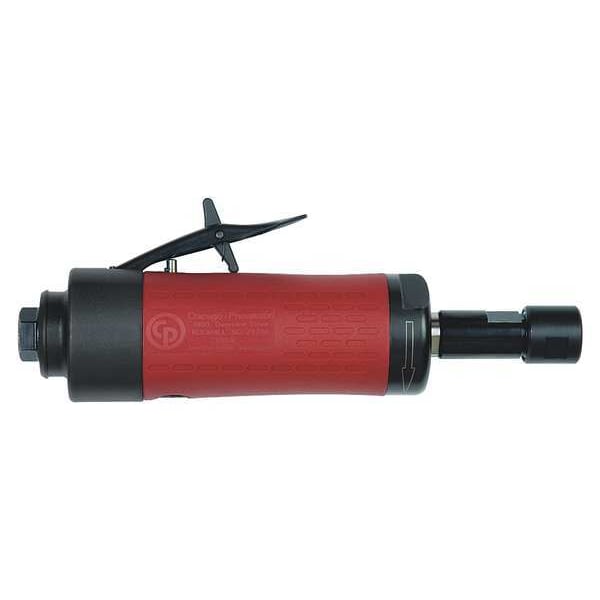

Straight Die Grinder, 1/4 in NPT Female Air Inlet, 1/4 in Collet, Heavy Duty, 24,000 RPM, 0.5 hp
| Item | Die Grinder |
|---|---|
| Overall Length | 7-3/4 in |
| Air Inlet | 1/4 in NPT Female |
| Horsepower | 0.5 |
| Free Speed | 24,000 rpm |
| Max. Speed | 24,000 rpm |
| Grinder Type | Straight |
| Includes | Wrenches |
| Bearing Type | Ball |
| Average CFM @ 15 Second Run Time | 5.8 |
| Duty | Heavy Duty |
| Characteristics | Compact, Ergonomic, Lightweight, Streamlined |
| Grinder Orientation | Straight |
| Min. Hose Size | 3/8 in |
| Handle Material | Composite |
| Variable Speed | Yes |
| CFM @ Full Load | 23.3 |
| Collet | 1/4 in |
| Throttle | Safety Lever |
| Tool Weight | 1.7 lb |
| Application | Deburring, Die contouring, Light chamfering |
| Standards | EN ISO 11148-9:2012 |
| Features | High Precision, Operator Comfort |
| Safety Features | Streamlined Safety Lever |
| Safety Stop Mechanisms | Not Applicable |
| Exhaust Location | Rear |
| Air Inlet Type | NPT |
| Grip Style | Barrel Grip |
| Switch Type | Safety Lever |
| Switch Location | Top |
| Air Pressure | 90 psi |
| Air Consumption | 23 cfm |
| Collet Size | 1/4 in |
| Kit Contents | Bare Tool |
| Minimum Speed | 24,000 rpm |
| Tool Style | Straight |
| Series | CP3000 Series |
| Power Source | Air Powered |
| Accessory Free Tool Change | No |
| Vibration Level | 2.5 m/sq sec |
| Air Inlet Connection Size | 1/4 in |
| Air Inlet Gender | Female |
| Package Quantity | 1 |
