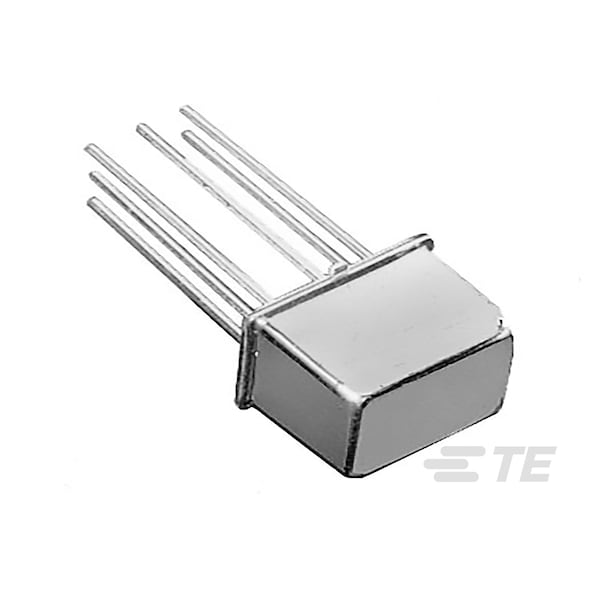

JMAWD-18XL = M39016/15-032L
JMAWD-18XL = M39016/15-032L
| Contact Arrangement | 2 Form C, DPDT, 2 C/O |
|---|---|
| MOSFET Driver | Without |
| Input Voltage (VDC) | 18 |
| Product Type | Relay |
| Coil Suppression Diode | With |
| Coil Polarity Protection Diode | Without |
| Coil Power Rating (DC) (mW) | 368 |
| Actuating System | DC |
| Contact Current Rating (A) | 1 |
| Relay Type | Military, Aerospace High Performance |
| Transistor Driver | Without |
| Shock | 75G's, 6ms |
| Termination Type | Long Leads |
| Coil Resistance (Ω) | 880 |
| Vibration | 30G's, 10 to 3000Hz |
| Contact Current Class | Low Level to 1 A |
| Coil Voltage (VDC) | 18 |
| Coil Magnetic System | Monostable, Non-Polarized |
| Operating Temperature Range (°C) | -65 to 125 |
| Mounting Type | Printed Circuit Board |
| Enclosure Type | Hermetically Sealed |
| Package Quantity | 1 |
