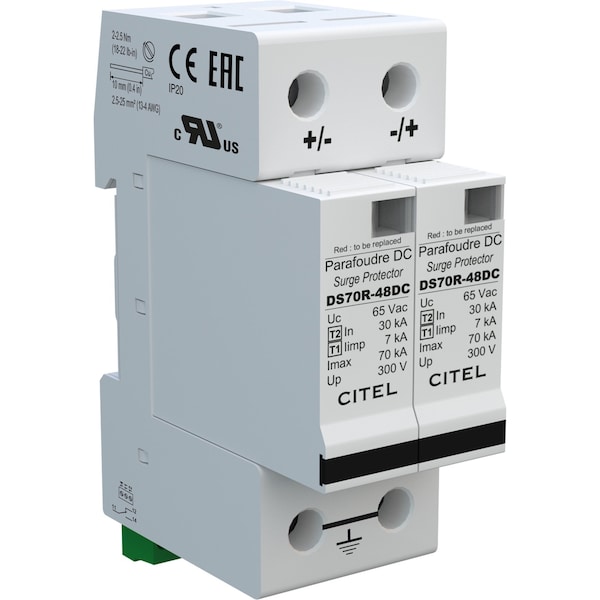

DIN Rail Dc Protector, 48Vdc, 2W+G, 70Ka Imax, Ul1449 Type 4Ca
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Din Rail |
| Voltage | 48 V |
| Modes of Protection | DC+-G, DC--G, DC+-DC- |
| Max. Surge Current per Mode | 70 kA |
| Nominal Discharge Current | 10 kA |
| Max. Continuing Operating Voltage | 65V |
| IP Rating | IP20 |
| Enclosure Material | Thermoplastic |
| Length | 90 mm |
| Depth | 36 mm |
| Width | 67 mm |
| Standards | UL 1449 Type 4CA |
| Package Quantity | 1 |
