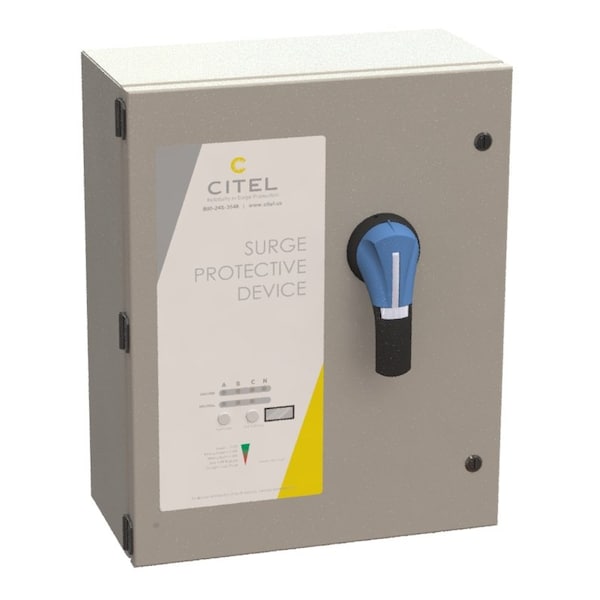

Surge Protection Device, 1 Phase, 120/240V
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Flange |
| Phase | 1 |
| Voltage | 120/240V |
| Voltage Protection Rating | 1800V/1200V/1200V/900V |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current per Mode | 375 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 420V/210V/210V/150V |
| Enclosure NEMA Rating | NEMA 4, NEMA 12 |
| IP Rating | IP65 |
| Enclosure Material | Carbon Steel |
| Standards | UL1449 TYPE 1/2 |
| Package Quantity | 1 |
