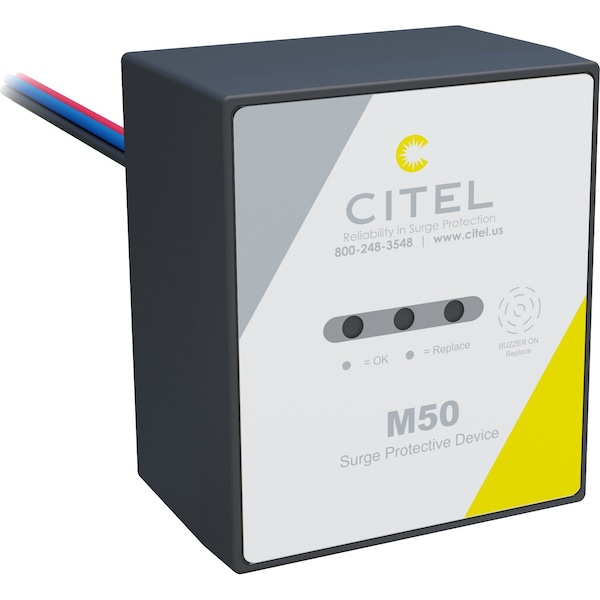

Surge Protection Device, 1 Phase, 120V, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Panel |
| Phase | 1 |
| Voltage | 120 V |
| Voltage Protection Rating | 700V/1200V/1200V |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current per Mode | 50 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 150 kA |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 140V/140V/120V |
| IP Rating | IP66 |
| Enclosure Material | Aluminum |
| Length | 4.02 in |
| Depth | 2.35 in |
| Width | 3.46 in |
| Standards | UL1449 TYPE 2 |
| Package Quantity | 1 |
