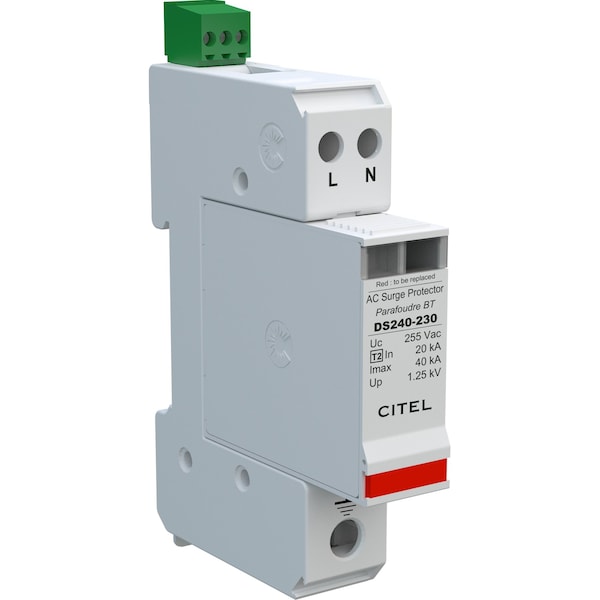

Surge Protection Device, 1 Phase, 230/400V, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | DIN Rail |
| Phase | 1 |
| Voltage | 230/400V |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current per Mode | 40 kA |
| Nominal Discharge Current | 20 kA |
| Max. Continuing Operating Voltage | 510V/255V |
| Enclosure NEMA Rating | NEMA 2 |
| IP Rating | IP20 |
| Enclosure Material | Thermoplastic |
| Length | 90 mm |
| Depth | 18 mm |
| Width | 67 mm |
| Package Quantity | 1 |
