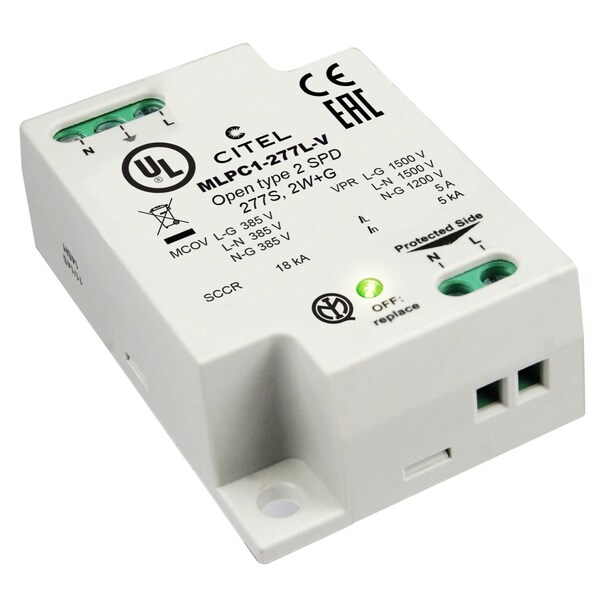

Surge Protection Device, 1 Phase, 277V, 2 Poles, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Flange |
| Phase | 1 |
| Voltage | 277 V |
| Number of Poles | 2 |
| Voltage Protection Rating | 1500V/1500V/1200V |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current per Mode | 10 kA |
| Nominal Discharge Current | 5 kA |
| Short Circuit Current Rating | 18 kA |
| Max. Continuing Operating Voltage | 385V/385V/255V |
| IP Rating | IP20 |
| Enclosure Material | Thermoplastic |
| Length | 59 mm |
| Depth | 20.5 mm |
| Width | 40 mm |
| Standards | UL 1449 Type 2 |
| Package Quantity | 1 |
